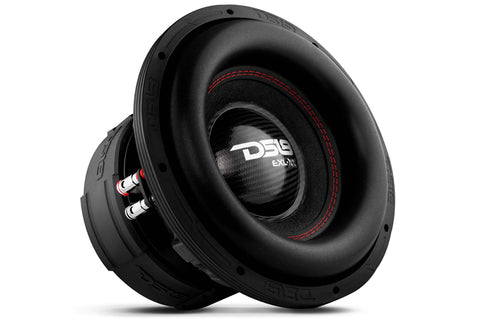

As a premium addition to our renowned EXL series, the EXL-XX12.2DHE delivers outstanding performance at a price point that challenges even the priciest high-excursion subwoofers on the market. Built for serious audiophiles, it features a robust 3-inch black aluminum voice coil engineered for superior power handling and efficiency.
With an impressive 2000W RMS and a thunderous 4000W MAX power rating, this subwoofer delivers explosive performance and deep, resonant bass that leaves a lasting impact.

Key Features:

12" High Excursion Subwoofer
MAX Power: 4000 Watts
RMS Power: 2000 Watts
Impedance: 2-Ohm 3" DVC
Ferrite Magnet
87dB

Specifications:

Nominal Diameter: 12"
Nominal Impedance: 2+2 ohms
RMS Power Handling: 2000W
Maximum Power Handling: 4000W
Sensitivity (1w/1m): 87dB
Frequency Response: 20-1.3K Hz
Recommended Lo Pass Crossover: 80 Hz

MOTOR

Voice Coil Diameter: 3" / 75.6mm
Voice Coil Former Material: Black Aluminum
Winding Material: CCAW
Cone Material: Paper
Dust Cap Material: Glass Fiber
Surround Material: Foam
Basket Material: Aluminum
Basket Color/Finish: Black
Magnet Material: Ferrite
Magnet Weight: 306 OZ
Displacement Volume: 3.26L

THIELE & SMALL PARAMETERS

Equivalent Volume Vas: 21.986L
Free Air Resonance Fs: 39.8 Hz
Mechanical Factor Qms: 5.128
Electrical Factor Qes: 0.529
Total Factor Qts: 0.468
Moving Mass Mms: 302.158 g
Compliance Cms: 0.025 mm/N
Bl Factor Bl: 16.523
Voice Coil Inductance Le: 6.9 mH
Diaphragm Area Sd: 433.74 cm ²
Dc Resistance Re: 2 + 2 ohms
Efficiency Bandwidth Product EBP: 75.2

MEASUREMENTS

Overall Diameter: 12.63" / 321mm
Overall Depth: 9.25" / 235mm
Front Mount Baffle Cutout: 11.1" / 282mm
Mounting Depth: 7.87" / 200mm
Motor Diameter: 8.89" / 226mm
Gross Single Unit Weight (lb): 53.5
Dimensions (W x L x H in Inches): 15 x 15 x 12.5
Quantity of Units in Master Carton: 1
Gross Master Carton Weight (lb): 53.5
M/C Dimensions (W x L x H in Inches): 15 x 15 x 12.5
