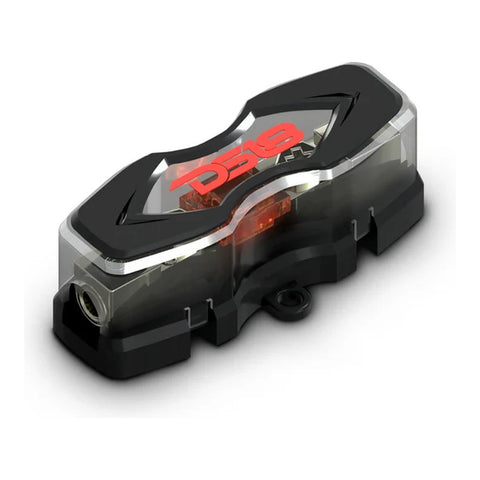

AFS Mini-ANL Fuse Holder with 150A Fuse (4-8 Gauge Input / Output)
The DS18 FHS-MINI-150A is a compact, high-efficiency Mini-ANL (AFS) fuse holder engineered to protect automotive, marine, and powersports audio systems from short circuits and electrical overloads. Designed to accept either 4 AWG or 8 AWG power cables on both input and output sides, this inline fuse holder includes a pre-installed 150-Amp AFS Mini-ANL fuse. Built with a solid metal contact block and a clear, heat-resistant protective casing, it ensures maximum current transfer, low resistance, and reliable circuit protection.
- Complete Circuit Protection: Includes a pre-installed 150A AFS Mini-ANL fuse to safeguard amplifiers and vehicle wiring against high-current electrical spikes and shorts.
- Versatile Wire Size Compatibility: Accepts 4 AWG or 8 AWG power wire on both input and output ports via included wire sizing adapters.
- High-Conductivity Internal Block: Manufactured from premium solid metal alloy for maximum electrical conductivity and minimal voltage drop.
- Clear Heat-Resistant Cover: Impact-resistant transparent housing allows for easy visual inspection of fuse status while insulating live electrical connections.
- Vibration-Proof Screw Terminals: Deep-recessed set-screw terminals ensure tight, secure wire clamping to withstand heavy vehicle vibration.
Specification
- Fuse Type: AFS Mini-ANL Fuse
- Included Fuse Rating: 150 Amps
- Input Terminal: 1x 4 AWG or 8 AWG (with adapter)
- Output Terminal: 1x 4 AWG or 8 AWG (with adapter)
- Internal Contact Material: High-Conductivity Solid Metal Block
- Enclosure Material: Heat-Resistant Clear Plastic Housing
- Terminal Connection: Hex Allen Head Set-Screws
- Application: 12V DC Automotive, Marine, and Powersports Audio Installations
