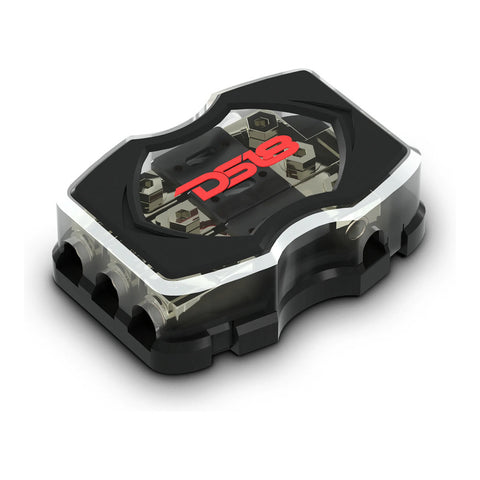

3-Way ANL Fuse Distribution Block with 3x 150A Fuses (1/0 Gauge Input to Triple 4 Gauge Outputs)
The DS18 FHS-ANL3-150A is a heavy-duty fused power distribution block designed to route power safely to up to three amplifiers in high-output car audio systems. Featuring a main 1/0 AWG input port and three individual 4 AWG fused output ports, this unit comes pre-installed with three 150-Amp ANL fuses to protect connected equipment from high-current overloads and short circuits. Built with high-conductivity nickel-plated solid brass blocks and housed in a durable heat-resistant cover, it ensures maximum power delivery, minimal voltage loss, and complete circuit safety.
- 3-Way Fused Distribution: Splits a single 1/0 AWG main power input into three 4 AWG output lines, allowing centralized power distribution for multi-amplifier setups.
- Integrated ANL Fuse Protection: Pre-installed with three 150A ANL fuses to safeguard individual amplifier power runs against electrical spikes and shorts.
- High-Conductivity Solid Brass: Heavy-duty nickel-plated brass internal construction minimizes resistance and ensures maximum current flow.
- Clear Protective Enclosure: Snap-on, high-impact transparent plastic housing protects live terminals from shorting while allowing quick visual inspection of fuses.
- Vibration-Proof Cable Clamping: Deep wire entry ports equipped with heavy-duty set-screws maintain tight, secure wire connections under heavy vehicle vibration.
Specification
- Fuse Type: High-Current ANL Fuses
- Included Fuse Rating: 3x 150 Amp Fuses
- Input Port: 1x 1/0 AWG (Gauge) Input
- Output Ports: 3x 4 AWG (Gauge) Fused Outputs
- Internal Contact Material: Solid Brass with Nickel Plating
- Enclosure Material: Heat-Resistant Transparent Plastic Cover
- Terminal Connection Type: Hex Allen Head Set-Screws
- Application: 12V DC Automotive, Marine, and Powersports Audio Installations
