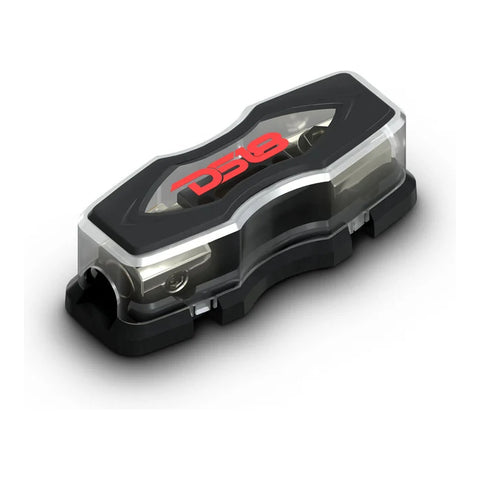

Inline ANL Fuse Holder with 200A Fuse for High-Power Audio Systems
The DS18 FH-ANL-200A is a heavy-duty inline ANL fuse holder engineered to protect high-output automotive, marine, and powersports sound systems from electrical overloads and short circuits. Pre-installed with a 200-Amp ANL fuse, this high-current fuse holder features high-conductivity nickel-plated brass internal contacts to ensure maximum power transfer with minimal voltage drop. Enclosed in a durable, heat-resistant protective casing, it provides essential safety for high-wattage amplifiers and main battery power runs.
- 200A Circuit Protection: Includes a pre-installed 200-Amp ANL fuse to safeguard heavy-gauge power lines and amplifiers against electrical spikes and shorts.
- Large Wire Gauge Compatibility: Designed to accept heavy 1/0 AWG or 4 AWG power wire entry and exit for high-amperage current demands.
- Solid Brass Contact Block: Nickel-plated solid brass internal construction minimizes electrical resistance and resists oxidation over time.
- Heat-Resistant Protective Casing: Tough, impact-resistant transparent housing insulates live connections to prevent accidental grounding.
- Vibration-Proof Screw Terminals: Deep-recessed set-screw terminals clamp heavy power cables securely to withstand high-vibration vehicle environments.
Specification
- Fuse Type: High-Current ANL Fuse
- Included Fuse Rating: 200 Amps
- Input Terminal: 1x 1/0 AWG or 4 AWG Wire Entry
- Output Terminal: 1x 1/0 AWG or 4 AWG Wire Exit
- Internal Contact Material: Solid Brass with Nickel Plating
- Enclosure Material: Heat-Resistant Protective Plastic Housing
- Terminal Connection Type: Hex Allen Head Set-Screws
- Application: 12V DC Automotive, Marine, and Powersports Audio Installations
