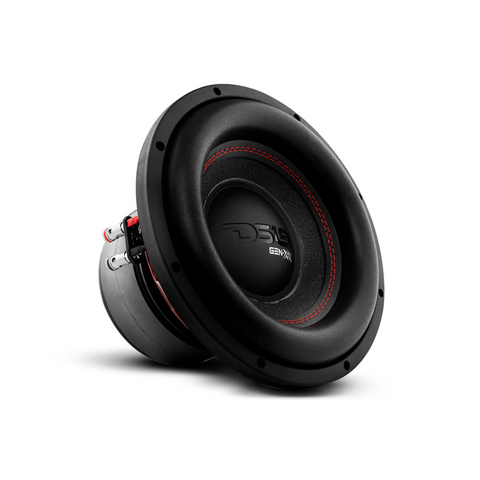

Introducing the DS18 GEN-XX10.4DHE €”an exciting breakthrough in car audio that delivers powerful low-frequency performance without breaking the bank. This subwoofer brings the thunderous, concert-like bass experience straight to your vehicle, letting you feel every beat.
Built with premium materials, the GEN-XX10.4DHE is engineered for professional-grade sound and long-lasting durability, making it a top choice for serious bass lovers.
Key Features:
- 10" High Excursion Subwoofer
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 4-Ohm 2" DVC
- Ferrite Magnet
- 84.6dB
Specifications:
- Nominal Diameter: 10"
- Nominal Impedance: 4+4 Ohm
- RMS Power Handling: 500W
- Maximum Power Handling: 1000W
- Sensitivity (1w/1m): 84.6 dB
- Frequency Response: 20Hz - 1.1 KHz
- Recommended Lo Pass Crossover: 90Hz
- MOTOR
- Voice Coil Diameter: 2" / 50.8mm
- Voice Coil Former Material: Black Aluminum
- Winding Material: SV
- Cone Material: Paper
- Dust Cap Material: PPI
- Surround Material: Foam
- Basket Material: Steel Basket
- Basket Color/Finish: Glossy Red
- Magnet Material: Ferrite
- Magnet Weight: 136 oz
- Displacement Volume: 1.82L
- THIELE & SMALL PARAMETERS
- Equivalent Volume Vas: 16.583 L
- Free Air Resonance Fs: 37.6 Hz
- Mechanical Factor Qms: 4.705
- Electrical Factor Qes: 0.476
- Total Factor Qts: 0.432
- Moving Mass Mms: 166.794g
- Compliance Cms: 0.107mm/N
- Bl Factor BI: 23.041N/A
- Voice Coil Inductance Le: 0.6741mH
- Diaphragm Area Sd: 330.64cm ²
- DC Resistance Re: 3.2+3.2 ohms
- Efficiency Bandwidth Product EBP: 78.99
- MEASUREMENTS
- Overall Diameter: 10.28" / 261 mm
- Overall Depth: 7.21" / 183 mm
- Front Mount Baffle Cutout: 9.14" / 232 mm
- Mounting Depth: 6.14" / 156mm
- Motor Diameter: 6.14" / 156 mm
- Gross Single Unit Weight (lb): 19
- Dimensions (W x L x H in Inches): 11.5 x 11.5 x 8.75
- Quantity of Units in Master Carton: 2
- Gross Master Carton Weight (lb): 39
- Master Carton Dimensions (W x L x H in Inches): 12 x 12 x 18.5
