High-Excursion Deep Bass Engineering Delivering Heart-Pounding Subsonic Authority.

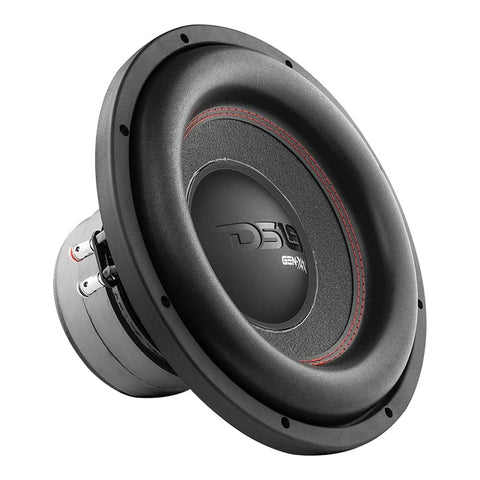

The DS18 GEN-XX12.4DHE 12" Dual 4-Ohm High-Excursion Car Subwoofer redefines low-frequency value, packing concert-quality, deep-thumping bass into an affordable and striking platform. Precision-engineered for enthusiasts who crave the physical sensation of heavy sub-bass without needing astronomical amounts of amplifier power, this capable driver features a massive 136 oz double-stacked ferrite motor and an impressive 25mm Xmax configuration. Built into a high-visibility, glossy red structural steel basket and utilizing a premium treated paper cone with a high-roll foam surround, the GEN-XX12.4DHE easily drops down into subsonic frequencies to turn heads and shake your cabin with absolute precision.
- Extreme High-Excursion Foam Surround: Features an extra-wide, high-roll flexible foam surround providing an incredible 25mm of one-way linear Xmax, allowing the cone to move massive volumes of air for deeper, body-resonating sub-bass impact.
- 136 oz Double-Stacked Ferrite Motor: Driven by a heavy-duty double-stacked ferrite magnet configuration, generating dense magnetic flux fields to manage the long-throw suspension while preserving crisp cone alignment.
- Black Aluminum 2-Inch Voice Coil: Driven by a long 2-inch (50.8mm) Dual 4-Ohm voice coil wound on a lightweight black aluminum former, improving heat dissipation to keep the motor assembly stable under heavy bass tracks.
- Signature Glossy Red Steel Basket: Housed in a rigid, stamped-steel anti-resonant basket finished in an iconic glossy red coat, ensuring solid structural integrity while giving your trunk build a high-end customized look.
- Optimized Paper Cone Matrix: Combines a traditional, non-pressed paper cone structure with a highly durable polypropylene (PPI) dust cap to deliver an ideal balance of stiffness, lightweight agility, and minimal harmonic distortion.
Specification
- Subwoofer Typology: 12" High-Excursion Dual Voice Coil (DVC) Car Subwoofer (Sold Individually)
- Continuous Power Handling: 600 Watts RMS
- Maximum Peak Power Capacity: 1200 Watts MAX
- Nominal System Impedance: 4 Ohms + 4 Ohms (Configurable to 2 Ohms parallel or 8 Ohms series wiring)
- Sensitivity Rating: 86.7 dB (@ 1W/1m)
- Frequency Response Profile: 20 Hz - 1.5 kHz
- Free Air Resonance (Fs): 30.5 Hz
- Total Q-Factor (Qts): 0.469
- Equivalent Volume (Vas): 56.436 Liters
- Moving Mass (Mms): 154.38 grams
- Recommended Low-Pass (LPF) Crossover Cut: 80 Hz
- Physical Mounting Geometry: Overall Diameter: 316mm | Front Mount Baffle Cutout: 277mm | Mounting Depth: 165mm | Overall Depth: 193mm | Motor Diameter: 156mm
- Displacement Volume: 1.69 Liters
- Power Configuration: 100% Passive Sub-Bass Transducer (Requires a dedicated high-power mono amplifier and an engineered enclosure; operates completely separate from active AC mains lines)
-
What's in the Box:
- 1 x DS18 GEN-XX12.4DHE 12" High-Excursion Subwoofer Unit
- 1 x Pre-Installed High-Roll Foam Gasket Pad
- 1 x Technical Specification Blueprint Sheets & Complete Thiele-Small Parameter Reference Sheet
