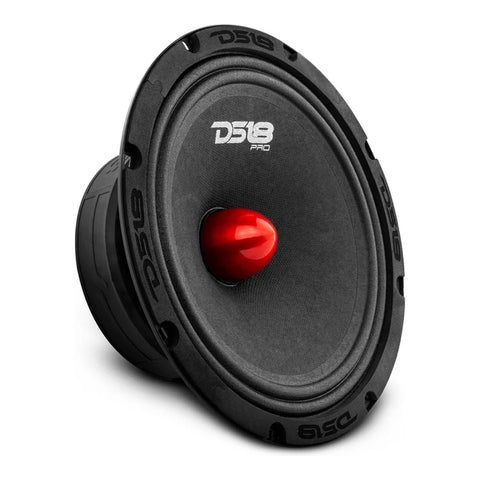

PRO-GM Series 8-Inch Midrange Loudspeaker (580 Watts MAX, 4 Ohm)
The DS18 PRO-GM8.4 is an 8-inch midrange speaker designed to deliver high-output, pro-audio sound quality for custom automotive installations. Capable of handling up to 580 Watts MAX power and 190 Watts RMS at a 4-ohm nominal impedance, this driver produces loud, clear vocal and mid-frequency audio designed to cut through high-SPL bass systems. Built with a high-efficiency paper cone, cloth surround, and a high-temperature voice coil supported by a heavy-duty ferrite magnet, the PRO-GM8.4 ensures long-lasting reliability during intense listening sessions.
- High-Output Midrange Performance: Engineered to produce high volume levels with 580 Watts MAX and 190 Watts RMS power handling.
- 4-Ohm Nominal Impedance: Easily matches with multi-channel amplifiers for efficient power distribution and setup flexibility.
- High-Efficiency Paper Cone: Lightweight paper cone and cloth surround combination provides fast transient response and crisp vocal clarity.
- High-Temperature Kapton Voice Coil: Features a 1.5-inch high-temperature voice coil designed to handle continuous thermal load during prolonged high-volume playback.
- Black Steel Basket: Sturdy stamped steel basket provides rigid structural support for the ferrite motor structure.
Specification
- Nominal Diameter: 8 Inches (203mm)
- Nominal Impedance: 4 Ohms
- MAX Power Handling: 580 Watts
- RMS Power Handling: 190 Watts
- Sensitivity (1w/1m): ~95 dB
- Frequency Response: 90Hz – 10kHz
- Voice Coil Diameter: 1.5 Inches (38.1mm)
- Voice Coil Former Material: Kapton
- Magnet Material: Ferrite
- Cone / Surround Material: Paper Cone with Cloth Surround
- Frame Material: Black Stamped Steel Basket
- Mounting Depth: Approx. 82mm (3.23 inches)
- Cutout Diameter: Approx. 182mm (7.16 inches)
