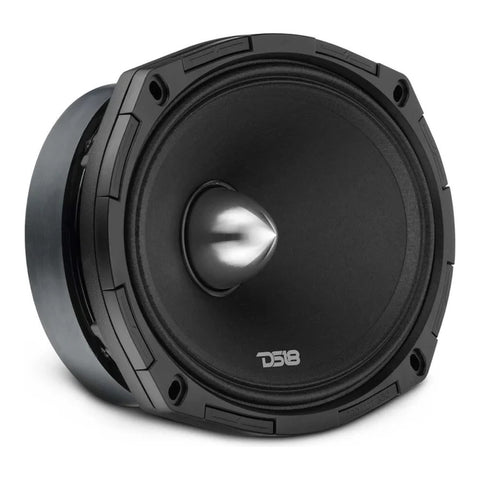

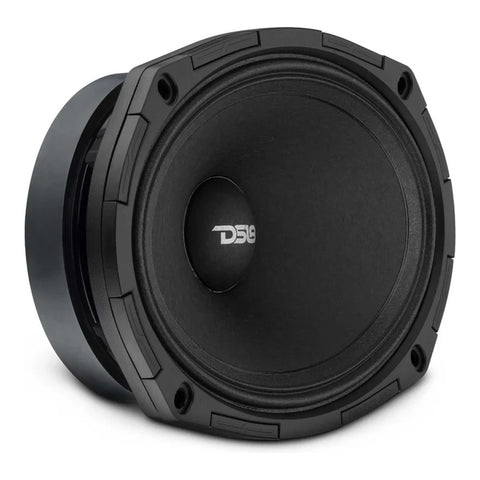

PROJECT360 6.5-Inch High-Sensitivity Mid-High Loudspeaker with Rotating Recone Design
The DS18 PROJECT360 (6.5-Inch Ferrite model) is a high-sensitivity mid-high frequency loudspeaker engineered for extreme-volume automotive and competition sound systems. Featuring DS18's patent-pending Rotating Recone Design, this speaker allows users to perform field-serviceable, plug-and-play recone repairs without glue or lengthy downtime. Built with a 6.5-inch curvilinear paper cone, a durable aluminum basket, and a high-efficiency ferrite motor, the PROJECT360 delivers 300 Watts RMS and 600 Watts MAX power while outputting crystal-clear vocals and mid-high frequency audio.
- Patent-Pending Rotating Recone System: Enables glue-free, quick-swap field repairs of the moving assembly to eliminate system downtime.
- High-Power Handling: Rated for 300 Watts RMS and 600 Watts MAX power output.
- Superior Efficiency: High sensitivity rating (98 dB @ 1W/1m) yields high volume output per watt of power.
- Rigid Aluminum Basket: Heavy-duty aluminum frame provides structural support, heat dissipation, and resonance suppression.
- Curvilinear Paper Cone: High-efficiency paper cone and cloth surround combination engineered for rapid transient response and clear mid-high reproduction.
Specification
- Nominal Diameter: 6.5 Inches (165mm)
- Nominal Impedance: 4 Ohms
- RMS Power Handling: 300 Watts
- MAX Power Handling: 600 Watts
- Sensitivity (1w/1m): 98 dB
- Frequency Response: 95Hz – 17kHz
- Recommended High-Pass Crossover: 140 Hz
- Voice Coil Diameter: 1.75 Inches (44.5mm)
- Magnet Material: Ferrite
- Basket Material: Aluminum
- Mounting Depth: 3.0 Inches (76.7mm)
- Cutout Diameter: 5.83 Inches (148mm)
