The ZR Series redefines what's possible in car audio, designed to maximize performance and bring out the full potential of your sound system.

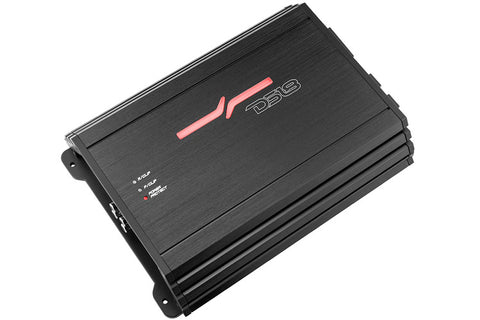

With the DS18 ZR600.4D, you're in complete control. It features versatile tuning options like Lowpass, Highpass, and Full Range selector switches, along with a Gain knob for precise adjustments. This flexibility lets you fine-tune every track to your exact preferences, delivering crystal-clear sound that €™s perfectly tailored to your listening style.

Key Features:

• 4 Channel Full Range
• Class D
• 2 ~ 4 Ohm Stable
• 4 x 150 Watts @ 4 Ohm
• Clip/Protection Indicator
• Built in Crossover

Specifications:

• Total Watts (Peak): 2400W
• RMS Power @ 4 Ohm: 4 x 150W
• RMS Power @ 2 Ohm: 4 x 240W
• RMS Power @ 4 Ohm Bridge: 2 x 400W

• AUDIO
• Frequency Response: 20Hz - 20KHz
• Signal to Noise Ratio: >90dB
• Efficiency @ 4 Ohm: 90%
• Damping Factor: 160
• Input Impedance: 20K ohm
• Channel Separation: 60dB
• Total Harmonic Distortion (THD): 1.00%
• Low Level Input Range: 0.2 - 6V
• Selectable X-Over: FULL / LPF / HPF
• X-Over Filter Range: 40Hz - 4KHz

• FEATURES
• Amplifier Class: Digital
• Amplifier Type: Stereo Full Range
• Number of Channels: 4
• Minimum Impedance: 2 Ohm (Stereo) / 4 Ohm (Bridge)
• LED Indicator: Clipping / Protect / Power
• Power Input Terminal Size: 4GA
• Fuse Size: 2 x 30A
• Thermal Protection: Yes
• Over-Load Protection: Yes
• DC Output Protection: Yes
• Short Circuit Output Protection: Yes
• Voltage Input Protection: Yes <9V / >16V
• Clipping Protection: Yes
• Body Color / Finish: Black Aluminum Brush

• MEASUREMENT
• Overall Length: 10" / 254mm
• Overall Width: 7.24" / 184mm
• Overall Height: 2" / 53mm
• Heatsink Length: 8.54" / 217mm
• Gross Single Unit Weight: 4.11 lb
