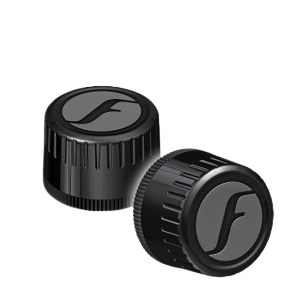

The Advanced Motorcycle Wireless Tyre Pressure Monitoring System (TPMS) features award-winning automobile-grade sensors and Bluetooth 5 technology for real-time pressure and temperature monitoring. It detects slow and fast leaks, sending instant alerts to smartphones or smartwatches. The system is easy to install without drilling or wires, with theft deterrents and compatibility for multiple vehicles.
Key Features
- Award-Winning Automobile Grade Pressure Sensor & Bluetooth 5 Technology
- View tire pressure & temperature
- Monitor in real-time while riding or when in Bluetooth range
- Detects slow or fast leaks and alerts users to anomalies
- Sends instant audio, haptic, and text alerts on a smartphone/smartwatch/Bluetooth headset
- Slow & Fast Leak Detection
- Multiple Vehicles Monitoring
- 2-Levels of Theft Deterrent
- Easy install on any motorcycle without running wires, drilling holes, and tedious programming
- Three levels of alerts when the thresholds are breached.
- Small penny-size sensor and weighs only 7.6 grams with CR1632 battery
Specifications
- Bluetooth: v5.0
- Transmit Conducted Power: +5.0dBm (sensor)
- Receiver Sensitivity: Conducted Sensitivity -97dBm @ 0.1%BER
- Antenna Return Loss: Typical -9dB
- Operating Frequency: 2.402~2.480 GHz
- Battery Type: CR1632 (sensor). Operating life up to 1 year. (NOTE: The battery operating life varies according to usage and climate temperature)
- Operating Temperature: -40°C to +85°C (sensor), -20°C to +60°C (sensor with common CR1632 batteries)
- Weight: 7.6g (sensor –with battery)
- Sensor Dimension H x D: 13.8mm x 20.2mm
- Maximum Pressure: 800kPa (116psi)
- ESD: 8kV air discharge & 4kV direct contact discharge according to CE standard
- Operating Humidity: up to 90% non-condensing at 40oC
- Dust and Water Proof: IEC60529 compliant to IP57(sensor)
- Sensor structural threshold: 100N ball pressure intensity test
- Mechanical & Environmental Reliability Testing Standards: IEC 60068-2-2, IEC 60068-2-1, ISO 21750, IEC 60068-2-29, IEC 60068-2-5, IEC 60068-2-32, ISO 15184, ISO 2409, SAE J2657, SAEJ113/13
