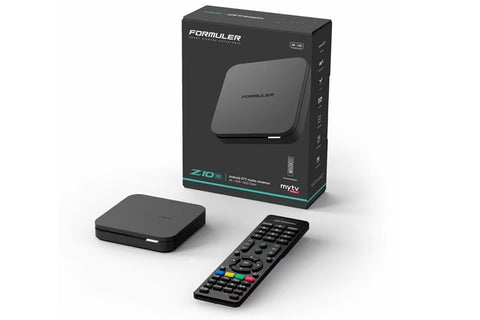

4K Android OTT media streamer - 4K | HDR | NAS Client

Features:

High-Definition Output: Supports 4K resolution (3840 x 2160) for clear and detailed visuals.
Efficient Performance:
- Processor: RealTek RTD1319 CPU
- Graphics: ARM G31 MP2 GPU
- Memory & Storage: 2GB DDR4 RAM and 4GB eMMC storage
Operating System: Runs on Android 10, providing access to a wide range of applications and services.
Networking:
- Wireless: 2.4G single-band Wi-Fi for basic wireless connectivity
- Ethernet: 100M Ethernet port for stable wired connections
Advanced Decoding:
- Video: 4K at 60fps, supports AV1, H.265(HEVC), AVS, H.264(AVC, MVC), Real, MPEG1/2/4, and VC-1.
- Audio: MPEG-1 Layer 1,2,3(2-CH), MPEG-2 Layer 1,2, and HE AAC V1/V2.
Digital Rights Management: Implements Widevine Level 1 and Level 3 DRM for secure content playback.
Compact Design:
- Dimensions: 88mm x 88mm x 17mm
- Color: Black
Connectivity Ports:
- USB: One USB 2.0 port
- HDMI: One HDMI port
- LAN: One LAN port
Power Specifications:
- Power Input: 12VDC / 1A
- Power Consumption: Max. 12W
- Standby Power: Ultra-low 0.5W

Formuler Z10 SE: Specifications

Output Resolution

Resolution: 4K (3840 x 2160)

Hardware

CPU: RealTek RTD1319
GPU: ARM G31 MP2
RAM: 2GB DDR4 @2400MHz
Storage: 4GB eMMC
Operating System: Android 10

Networking

Wireless: 2.4G 1T1R
Ethernet: 100M

Decoder

Video Decoder: 4K@60fps, AV1, H.265 (HEVC), AVS, H.264 (AVC, MVC), Real, MPEG1/2/4, VC-1
Audio Decoder: MPEG-1 Layer 1,2,3(2-CH), MPEG-2 Layer 1,2, HE AAC V1/V2
Support Language: Global
DRM: Widevine L1, L3

Dimensions

Length: 88mm
Width: 88mm
Thickness: 17mm
Color: Black

Ports

Power Input: 1
USB 2.0: 1
HDMI: 1
LAN: 1

Power Input

Power Rating: 12VDC / 1A
Power Consumption: Max. 12W
Standby Power: Max. 0.5W (Ultra low power)

Optional USB Tuners

ATSC USB Tuners:

Hauppauge WinTV-HVR-955Q (2040:b123)
Hauppauge WinTV-HVR-955Q (2040:b150)
Hauppauge WinTV-dualHD (2040:026d)

DVB-T USB Tuners:

Hauppauge WinTV-dualHD (2040:8265)
Geniatech MyGica T230 Black (0572:689A)
Geniatech OEM T230 White (0572:c68a)
Xbox One Digital TV Tuner (045E:02D5)

* DISCLAIMER: Design, features and specifications subject to change without notice. Some features in videos on the Internet may not be available on all models, please contact us for the TECHNICAL SPECIFICATIONS for a complete list of features by model. This feature list is for reference only, please contact us to verify features and functionality.
