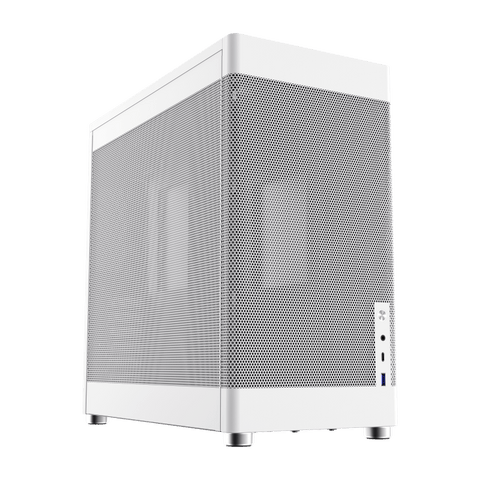

MeshBox PRO WT
GameMax MeshBox PRO ATX Chassis, featured 3x full mesh side and front, which focused powerful airflow, along with vertical airflow designed game case, which makes complex into simple, blends in the home
Vertical airflow channel, small size, high compatibility, basically suitable for installation of all mainstream accessories on the market
Key Features:
- The bottom fan position blows directly to the graphics card to optimize cooling performance to maximum
- The chassis is a modular design, optimizes wire management, and makes enough internal space.
- Good vertical airflow design, cooling internal anywhere and anyplace.
- Full area of dust-proof design, giving the computer a clean home
- Support 240 water cooling and up to 168mm air-cooling CPU cooler
- Support high-end popular graphics cards 305~355mm, unlimited games.
| Form Factor (Midi, Micro, Mini ITX, Full) | ATX Deskop Chassis | |
| Chassis | SPCC 0.8/0.6mm | |
| PSU Form Factor | ATX | |
| M/B Form Factor | ATX,Micro-ATX, DTX,Mini-ITX | |
| Front Panel | Full Metal Mesh | |
| Top Panel | ABS, Steel | |
| Side Panel | Left | Full Metal Mesh |
| Right | Full Metal Mesh | |
| External Drive Bay(s) | 5.25" (ODD) | *0 |
| 3.5" | *0 | |
| Internal Drive Bay(s) | 3.5" (HDD) | 3.5" x 1+SSDx 3 or SSD*4 |
| 2.5" (SSD) | ||
| I/O | Buttons | *1 |
| USB3.2 Port(s) | *2 (TYPE A*1+TYPE C*1) | |
| Audio | Combo Audio*1 | |
| Card Reader (Support) | *0 | |
| Cooling Fan Support | Front | *0 |
| Top | 2x120 or 2x140mm (Fan optional) | |
| Rear | 1x120mm (Fan optional) | |
| Left Side | *0 | |
| Bottom | 3x120 or 2x140mm (Fan optional) | |
| Water Cooling Support (Radiator Size) |
Front | *0 |
| Top | 240mm*1 | |
| Bottom | 240mm*1 | |
| Dust Cover | Bottom and Top with dust filter | |
| Slots | *7 | |
| Carton & Logo | GameMax | |
| Dimensions | Chassis | (L)401*(W)204*(H)386mm |
| Full Case (inc Fascia) | (L)413*(W)204*(H)398mm | |
| Carton | (L)470*(W)275*(H)463mm | |
| VGA Card Length | 355mm | |
| CPU Cooler Height | 168mm | |
| Cable Management Depth | Max. 34mm | |
