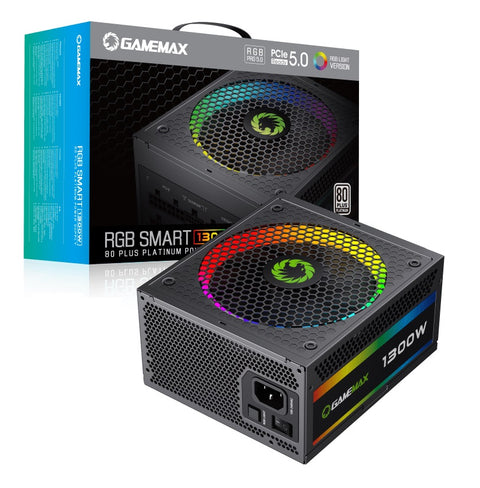

GameMax RGB-1300 ATX3.0 PCIE5.0 Ready, Fully Modular 80+ Platinum Certified, LLC+DC-DC design for Powerful single +12V rail helps ensure a stable and reliable supply to other PC components. with 140mm ARGB fan helps deliver brighter and stunning light effect and supports synchronization with compatible RGB motherboards from ASUS, GIGABYTE, MSI, and ASRock for countless illumination possibilities.

Key Features:

ATX3.0 PCI-E 5.0 Ready: It comes with 1x16pin 12VHPWR connector, for support latest GPU Cards
80 Plus Platinum Certified: RGB-1300 with 92% efficiency or higher under typical loads. Lower power consumption, less noise, and cooler temperatures.
RGB Light Mode: 25 smart RGB lighting modes with memory function, press the RGB controller switch to choose the color mode you like single color mode, breathing lights mode, and color mix mode.
Full Modular: Free-Cable Design, Farewell to messy cables! The daughterboards are directly soldered to the motherboard for better heat dissipation and impressive output power quality.
Ultra-quiet fan: The 140mm ultra-quiet fan keeps your power supply quiet while maintaining good heat dissipation.
Output and Protection: Powerful single +12V rails offer stable DC output and support high-end graphic cards and PC systems. Excellent capacitors offer stability, durability, and reliability, OPP/OVP/UVP/SCP/OCP electrical protection included.

Product Technical Specifications

80PLUS®	Cetificate	PLATINUM
Form Factor	Power Supply	Intel ATX 3.0 PCIe5.0
Dimensions	170 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information	Fan Size	140mm with ARGB LEDs
	Fan Control	Temperature control
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours
Cable Information	Modularity	Fully Modular
Cable Information	Cable type	Flat black cables
Electrical Features	Operating Temperature	0-50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
	MTBF	100,000 Hours (@ 25 °C, Excl. fan)
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety Ceritificate	Safety and EMC	cTUVus, TUV, CB, CCC, EAC, CE
Environmental	Compliance	RoHS

RGB Modes Operation Instructions:

Key Function	RGB LED Status
Turn On, Entry last Mode	Keep the Save memory mode
Press RGB Switch	Select RGB light mode
Press and Hold in 3sec	OFF the RGB LED light
Press the Switch again	White light flashes once and Entry in o the last mode
Press Longer Don't release	Entry Self-Test mode(All led White Light）
Release after Press longer	Exit Self-Test mode, Entry Last memory mode
Aura SYNC Mode:	Access external ARGB HUB or 5V 3pin signal from motherboard
