Robust 16+2+2 Phase Power Delivery for High-TDP Ryzen Processors
Delivering consistent power to high-performance CPUs requires robust power delivery. The 16+2+2 twin digital VRM configuration handles heavy electrical loads smoothly, maintaining voltage stability under intensive computational tasks or extended gaming sessions. This power architecture minimizes heat buildup and power fluctuations, protecting sensitive components while ensuring sustained performance for multi-core Ryzen processors.
PCIe 5.0 GPU and High-Speed M.2 Storage Configuration

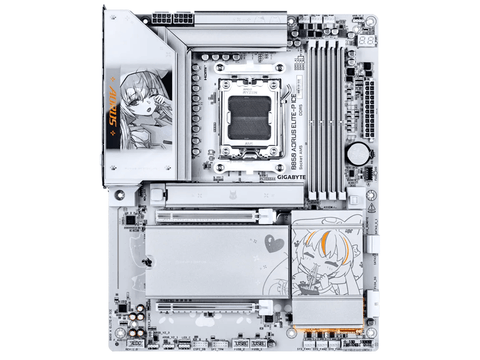

Modern gaming and content creation require high data throughput across graphics cards and storage drives. The Gigabyte B850 AORUS ELITE-P ICE includes primary PCIe 5.0 links to eliminate hardware bottlenecks.
- 1x PCIe 5.0 x16 slot: Delivers maximum bandwidth to current and next-generation discrete graphics cards.
- 1x PCIe 4.0 x4 slot: Provides support for add-in expansion cards.
- 1x PCIe 5.0 x4 M.2 slot: Enables extreme read and write speeds when paired with Gen5 NVMe solid-state drives.
- 3x PCIe 4.0 x4 M.2 slots: Provides expanded high-speed storage for large game libraries and media projects.
- 2x SATA 6Gb/s ports: Connects traditional SATA SSDs or high-capacity mechanical drives.
Ultra-Fast Connectivity with Wi-Fi 7 and 5GbE Wired LAN
High-speed networking hardware reduces latency and accelerates transfer speeds across local networks and the internet. The integrated Realtek 5GbE LAN port provides wired connection speeds up to 5 Gbps, five times faster than standard gigabit networks. For wireless connections, the board is equipped with the Realtek Wi-Fi 7 RTL8922AE module, offering low-latency wireless transmission. Integrated Bluetooth 5.4 provides low-power pairing for wireless peripherals, controllers, and audio gear.
DDR5 Memory Support up to 8200 MT/s Across 256 GB Capacity
System memory responsiveness directly affects frame pacing in games and system agility under heavy multitasking. Featuring 4 DDR5 DIMM slots operating in dual-channel mode, this motherboard supports system memory capacities up to 256 GB. Profile overclocking enables memory speeds up to DDR5 8200(O.C.) MT/s, ensuring fast data transfer rates between system memory and the CPU cache.
Comprehensive Rear I/O Connectivity and Realtek ALC1220 Audio
The rear panel offers extensive connectivity for high-speed external storage, displays, and peripheral devices:
| USB Type-C Ports | 2x USB 3.2 Gen 2 Type-C |
| USB Type-A Ports | 2x USB 3.2 Gen 2 Type-A, 4x USB 3.2 Gen 1, 4x USB 2.0/1.1 |
| Display Output | 1x HDMI 2.1 port |
| Audio Hardware | Realtek ALC1220 HD Audio CODEC |
The onboard Realtek ALC1220 audio codec delivers high-definition sound output, providing clear audio separation for headsets and surround audio systems.
