| Model | GP-GME1000GM PG5 ICE |
| Type | Intel Form Factor ATX 12V v3.1 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 12-6A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 1000W |
| Dimensions | 150 x 150 x 86mm |
| Fan Type | 135mm FDB Fan |
| 80 PLUS | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protections | OVP / OPP / SCP / UVP / OCP / OTP / NLO / SIP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >17ms (80% load) |
| Cable Type | Embossed, All white |
| Connectors - ATX/MB 20+4 Pin | x 1 : 610mm*1 |
| Connectors - CPU/EPS 4+4 Pin | x 2 : 600mm*2 |
| Connectors - PCI-e 16 Pin | x 1 : 700mm*1 |
| Connectors - PCI-e 6+2 Pin | x 4 : 600mm+150mm*2 |
| Connectors - SATA | x 8 : 600mm+150mm+150mm+150mm*2 |
| Connectors - 4 Pin Peripheral | x 4 : 500mm+150mm+150mm+150mm*1 |
Description
Product specifications
- PSU form factor: ATX
- Power (Watts): 1000
- Contains button battery: No
- PSU efficiency rating: 80 Plus Gold
GIGABYTE

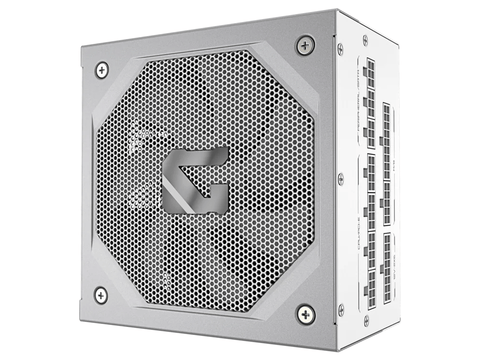

GIGABYTE GAMING 1000GM PG5 ICE 80+ Gold Cybenetics 1000W ATX3.1 Fully Modular Power Supply
Price:
$265
Key features
- 1000W
- 135mm
- Fully Modular
Getting your item
Delivery available
