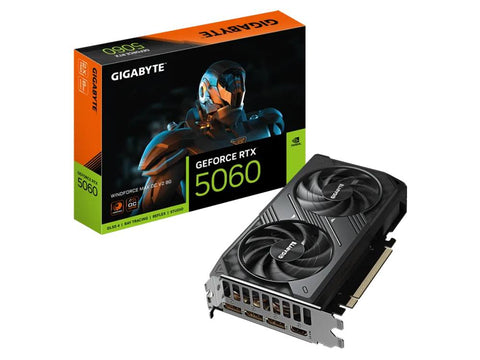

Factory overclocked to 2512 MHz out of the box, the Gigabyte GeForce RTX 5060 WINDFORCE MAX OC V2 8G combines NVIDIA Blackwell architecture and 8GB of high-speed 28 Gbps GDDR7 memory in a compact dual-slot frame. Equipped with 3840 CUDA cores and PCIe 5.0 interface support, this graphics card delivers capable rendering performance and multi-display flexibility for space-conscious PC builds.

Compact 199mm twin-slot footprint for small-form-factor builds

Measuring just 199 mm in length, 116 mm in width, and 40 mm in height, the Gigabyte WINDFORCE MAX OC V2 fits easily into smaller cases where internal GPU clearance is limited. Its standard ATX PCB form and 2-slot width ensure clean alignment with expansion slots on Mini-ITX and Micro-ATX motherboards. The card utilises Gigabyte's WINDFORCE cooling system to maintain stable operational temperatures during demanding gaming sessions without expanding beyond a compact envelope.

NVIDIA Blackwell architecture powered by high-bandwidth GDDR7 memory

At the centre of this graphics card is the NVIDIA GeForce RTX 5060 graphics processor, built on the advanced Blackwell architecture. Operating at a factory-boosted core clock of 2512 MHz (exceeding the 2497 MHz reference clock), it drives 3840 CUDA cores for smooth frame rates across modern titles. The card incorporates 8GB of next-generation GDDR7 memory running at an effective clock of 28 Gbps over a 128-bit memory bus, delivering elevated memory bandwidth to keep data pipeline throughput high.

Next-generation display connectivity featuring DisplayPort 2.1b

Equipped with four digital video outputs, the card supports up to four simultaneous displays at a maximum digital resolution of 7680x4320. Modern display standards are fully catered for across its rear I/O panel:

• DisplayPort 2.1b: 3x high-bandwidth connections for ultra-high-resolution and high-refresh-rate gaming monitors
• HDMI 2.1b: 1x output for direct connection to 4K televisions and desktop displays

Standard 8-pin power connector for straightforward installation

Integration into standard desktop builds is simple thanks to modest power requirements. The card relies on a single standard 8-pin PCIe power connector, removing the need for specialized 12V-2x6 power adapters or updated cable sets. Combined with a recommended system power supply of 550W, it offers an effortless upgrade path for mid-tier desktop configurations.
