NOTE: SFF graphics cards are designed for compact PC cases with limited space. Please ensure your case supports the card’s dimensions.
SPECIFICATIONS:
|
Graphics Processing |

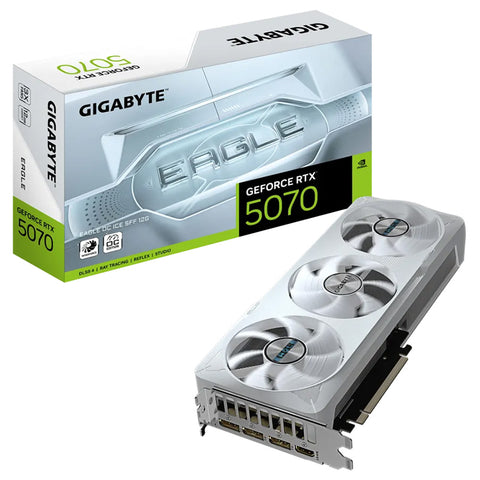

GeForce RTX™ 5070 |
|
Core Clock |
2587 MHz (Reference card : 2512 MHz) |
|
CUDA® Cores |
6144 |
|
Memory Clock |
28 Gbps |
|
Memory Size |
12 GB |
|
Memory Type |
GDDR7 |
|
Memory Bus |
192 bit |
|
Card Bus |
PCI-E 5.0 |
|
Digital max resolution |
7680x4320 |
|
Multi-view |
4 |
|
Card size |
L=290 W=120 H=50 mm |
|
PCB Form |
ATX |
|
DirectX |
DirectX 12 API |
|
OpenGL |
4.6 |
|
Recommended PSU |
750W |
|
Power Connectors |
16 Pin*1 |
|
Output |
DisplayPort 2.1b *3 HDMI 2.1b *1 |
|
Accessories |
1. Quick guide 2. 1x 12V-2x6 to 2x PCIe 8pin adapter |
