| X870E AERO X3D DARK WOOD | |
| CPU | AMD Socket AM5, support for AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD X870E |
| Memory | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB per DIMM); Dual channel, Non-ECC Un-buffered, AMD EXPO™ & Intel® XMP support; Speeds: DDR5 9000(O.C.) down to 4400 MT/s (Native DDR5 5200/4800 MT/s) |
| Onboard Graphics | 2 x USB4® Type-C® (up to 3840x2160@240 Hz, DP 1.4, HDR); 1 x Rear HDMI 2.1 (up to 4096x2160@60 Hz, HDCP 2.3, HDR); 1 x Front HDMI 1.4 (up to 1920x1080@30 Hz) |
| Audio | Realtek® ALC1220 CODEC, High Definition Audio (2/4/5.1/7.1-channel), S/PDIF Out, DSD audio support on line-out jack |
| LAN | 2 x Realtek® 5GbE LAN chips (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless & Bluetooth | MediaTek Wi-Fi 7 MT7927, RZ738 (2.4/5/6 GHz, 320MHz band), Bluetooth 5.4 |
| Expansion Slots | 1 x PCIe 5.0 x16 (PCIEX16 - Ryzen 9000/7000; PCIe 4.0 x8/x4 for Ryzen 8000); 1 x PCIe 5.0 x8 (PCIEX8 - shares bandwidth with PCIEX16); 1 x PCIe 4.0 x16 @ x4 mode (PCIEX4 - Chipset) |
| Storage Interface | 1 x M.2 (M2A_CPU: PCIe 5.0 x4/x2, Type 2580/2280); 1 x M.2 (M2B_CPU: PCIe 5.0 x4/x2, Type 22110/2280, shares bandwidth with USB4); 2 x M.2 (M2C_SB, M2D_SB: PCIe 4.0 x4/x2, Type 22110/2280); 4 x SATA 6Gb/s connectors; RAID: NVMe RAID 0/1/5/10 (RAID 5 for Ryzen 9000 only), SATA RAID 0/1/10 |
| USB Ports | Back Panel: 2x USB4® Type-C®, 1x USB 3.2 Gen 2x2 Type-C®, 5x USB 3.2 Gen 2 Type-A, 3x USB 3.2 Gen 1 Type-A; Internal Headers: 1x USB 3.2 Gen 2x2 Type-C®, 2x USB 3.2 Gen 1 (supports 4 ports), 2x USB 2.0/1.1 (supports 4 ports) |
| Internal I/O Connectors | 1x 24-pin ATX, 2x 8-pin 12V, 1x CPU fan, 1x CPU/water pump, 4x system fan, 2x system fan/water pump, 3x ARGB Gen2, 1x RGB, 4x M.2, 4x SATA, Front panel/audio, USB headers, Noise detection, TPM, HDMI, Reset/CMOS jumpers, 2x Temp sensors |
| Back Panel Connectors | Q-Flash Plus button, Clear CMOS button, Power button, Reset button, 1x HDMI, 2x USB4® Type-C®, 1x USB 3.2 Gen 2x2 Type-C®, 5x USB 3.2 Gen 2 Type-A, 3x USB 3.2 Gen 1, 2x RJ-45, 2x Antenna (2T2R), 2x Audio jacks, 1x Optical S/PDIF Out |
| I/O Controller & Monitoring | iTE® I/O Controller; Voltage, Temperature, Fan/Water flow rate detection, Fan fail warning, Speed control, Noise detection |
| BIOS | 1 x 512 Mbit flash, Licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features & Software | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup; Norton® Internet Security (OEM version) |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) |
| Weight | Not specified in technical text (Standard ATX motherboards weigh approx. 1.2 kg - 1.5 kg / 2.6 - 3.3 lbs) |
Description
Product specifications
- Chipset: AMD X870E
- CPU socket: AMD Socket AM5
- Contains button battery: Yes
- Manufacturer's warranty: 36 months
- Motherboard form factor: ATX
GIGABYTE

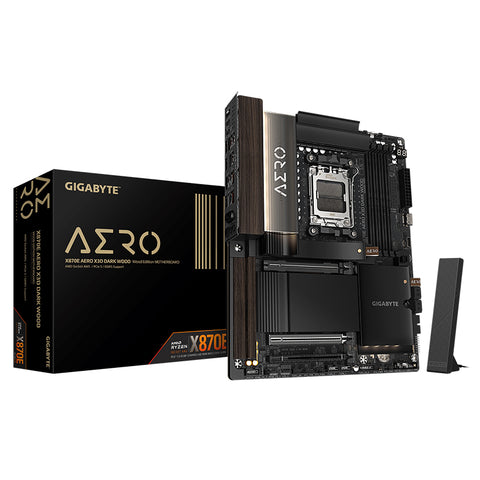

Gigabyte X870E Aero X3D Dark Wood AM5 ATX Motherboard (X870E AERO X DK WOOD)
Price:
$778
Key features
- Motherboard CPU Socket : AMD Socket AM5
- Motherboard Form Factor : ATX
- Motherboard Chipset : AMD X870E
Availability
Delivery available
