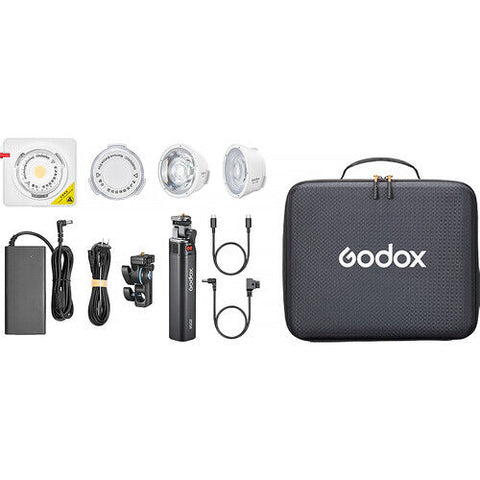

Items Included

Godox ML100R RGB Portable LED Light
- Godox Lens Reflector for ML100Bi & ML100R (15°)
- Godox AD-E2 Bracket for AD100Pro, AD200Pro & AD300Pro
- Lamp Head Protective Cover
- Power Adapter
- AC Power Cord
- Storage Bag
- Limited 1-Year B&H Warranty
Godox Lens Reflector for ML100Bi (36°)
- Limited 1-Year B&H Warranty
Godox BG02 Battery Grip
- D-Tap Cable
- USB-C Cable
- 1/4"-20 to 5/8" Adapter
- Limited 1-Year B&H Warranty

Key Features

Light with 15 & 36° Lens Reflectors
Includes BG02 Battery Grip
Output: 2360 Lux at 3.3' (5600K)
1800-10,000K CCT; RGB Color Control
AC or Battery Power
Onboard & App Control
CRI 95 | TLCI 95
Compact & Portable Design
Godox Mount, Optional Bowens Adapter
Includes AC Cable & Storage Bag

Compact, Versatile & Mighty in Color

Due to the popularity of the ML100 bi-color-only version, Godox now launches the ML100R RGB Portable LED Light, offering complete RGB color control. Compact enough to hold in your hand or slip into your bag, the ML100R, with an elegant white body, is the ideal pocket light to take anywhere. Featuring the same 4.8 x 4.3 x 1.8" size as the ML100Bi, the RGB version keeps flexible power possibilities for use in a wide range of places, from interior to exterior setups, working great for on-the-go shootings. The fixture comes with an innovative 15° lens reflector that increases its output while being interchangeable with an optional 36° one. In addition to bi-color punch and full RGB output, the ML100R also offers 14 selectable lighting effects to create the exact mood you need. Its RGB capability helps you add more creativity to your scenes.

Full RGB & Color Accuracy

The ML100R has a wider adjustable CCT with full RGB output from 1800 to 10,000K, and it features 0 to 100% dimming. With a high rating of 95 for both CRI and TLCI standards, the fixture delivers exceptional color accuracy. Even in its compact and portable form factor, the bare light has an illuminance of 2360 lux at 3.3' (5600K), which expands to an impressive 12,900 lux using the included 15° lens reflector.

High Precision

Supporting HSI adjustments, the ML100R allows you to precisely attune the light to a vast number of color possibilities. Intensity is adjustable from 0 to 100% along four dimming curves: linear, S-curve, exponential, and logarithmic. Green-to-magenta shift also means more precision when handling your settings.

Efficient Lens Reflectors

The ML100R's 15° lens reflector enhances contrast and image clarity by reducing light scattering. Two lens options are available, the included 15° and an optional 36°, allowing you to meet different lighting requirements. Unlike standard reflectors, the ML100R ones are much smaller and more convenient. They improve the performance and flexibility of the ML100R by modifying its beam spread.

14 Built-In Effects

The RGB version of the ML100Bi offers a higher number of creative lighting effects.

The light gives you 14 options, including RGB cycle, party, flash, lightning, cloudy, broken bulb, TV, candle, fire, fireworks, explosion, welding, police car, and SOS preset effects.

Onboard & App Control

You can easily manage the light settings locally on the fixture or wirelessly at 98.4' using your smartphone and the Godox Light app.

Power Anywhere

Suitable for a variety of lighting setups, the ML100R runs on AC power thanks to the included adapter and cord. Not limited to AC power, the light also offers four portable battery solutions, such as V-mount/NP-F batteries, a proprietary Godox BG02 battery grip, or even applying your own power bank.

Optional proprietary Godox BG02 battery handgrip
Optional V-mount battery using the separately available AK-B02 battery handgrip
Optional NP-F batteries using the separately available AK-B01 battery handgrip
Optional power bank using a separately available USB-C cable
Optional power bank holder accessory to mount an optional power bank on your light

Mounting

The unit features a 1/4"-20 hole at its bottom to give you the option of mounting the ML100R on a variety of optional tripods and accessories.

Optional Accessories

The light is compatible with an array of optional accessories thanks to its proprietary Godox mount. The ML100R brings you extra modifiers to really shape the light to your vision. This includes optional softboxes in different shapes, a convenient air soft tube, a collapsible Fresnel, and a mini projection attachment with various lens options. A Bowens adapter is also available separately to expand your lighting control and creative possibilities.

Portable Design

This compact white-body light is lightweight at approximately one pound and small enough to carry in the included storage bag.

Additional Details

110W power
Fan cooled

Godox ML100R RGB Portable LED Light

Key Specs

Item Type	1x LED Spot Light
Included Light Modifier	1x Reflector
Included Storage Case	Yes
Photometrics	1800K: 88 fc / 952 Lux (Unmodified) 1800K: 509 fc / 5480 Lux (with Reflector) 2800K: 250 fc / 2700 Lux (Unmodified) 2800K: 1374 fc / 14,800 Lux (with Reflector) 3200K: 230 fc / 2480 Lux (Unmodified) 3200K: 1263 fc / 13,600 Lux (with Reflector) 4300K: 225 fc / 2430 Lux (Unmodified) 4300K: 1235 fc / 13,300 Lux (with Reflector) 5600K: 219 fc / 2360 Lux (Unmodified) 5600K: 1198 fc / 12,900 Lux (with Reflector) 6500K: 215 fc / 2320 Lux (Unmodified) 6500K: 1170 fc / 12,600 Lux (with Reflector) 8500K: 203 fc / 2190 Lux (Unmodified) 8500K: 1105 fc / 11,900 Lux (with Reflector) 10000K: 196 fc / 2120 Lux (Unmodified) 10000K: 1086 fc / 11,700 Lux (with Reflector)
Color Temperature	1800 to 10,000K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 95 TLCI 95
Dimming	App-Controlled / Built-In Dimmer • 0 to 100%
Front Accessory Mount	Proprietary
Wireless Remote Control Type	Bluetooth
Power Source	AC to DC Adapter (Included) Battery (Not Included) USB Power (Cable Not Included)
Battery Plate Type	1x V-Mount (Not Included) 2x Sony L-Series / NP-F (Not Included)
Battery	1x V-Mount Rechargeable (Not Included) or 2x Sony-Type L-Series / NP-F Rechargeable (Not Included)
Input Power	20 VDC at 6 A
Power Consumption	110 W
Fixture Mounting	1x 1/4"-20 Female Thread

Light Fixture

Item Type	1x LED Spot Light
Included Light Modifier	1x Reflector
Included Storage Case	Yes
Photometrics	1800K: 88 fc / 952 Lux at 3.3' / 1 m (Unmodified) 22 fc / 243 Lux at 6.6' / 2 m (Unmodified) 9 fc / 107 Lux at 9.8' / 3 m (Unmodified) 1800K: 509 fc / 5480 Lux at 3.3' / 1 m (with Reflector) 141 fc / 1520 Lux at 6.6' / 2 m (with Reflector) 65 fc / 700 Lux at 9.8' / 3 m (with Reflector) 2800K: 250 fc / 2700 Lux at 3.3' / 1 m (Unmodified) 65 fc / 703 Lux at 6.6' / 2 m (Unmodified) 28 fc / 312 Lux at 9.8' / 3 m (Unmodified) 2800K: 1374 fc / 14,800 Lux at 3.3' / 1 m (with Reflector) 381 fc / 4110 Lux at 6.6' / 2 m (with Reflector) 177 fc / 1910 Lux at 9.8' / 3 m (with Reflector) 3200K: 230 fc / 2480 Lux at 3.3' / 1 m (Unmodified) 60 fc / 648 Lux at 6.6' / 2 m (Unmodified) 26 fc / 288 Lux at 9.8' / 3 m (Unmodified) 3200K: 1263 fc / 13,600 Lux at 3.3' / 1 m (with Reflector) 348 fc / 3750 Lux at 6.6' / 2 m (with Reflector) 161 fc / 1740 Lux at 9.8' / 3 m (with Reflector) 4300K: 225 fc / 2430 Lux at 3.3' / 1 m (Unmodified) 59 fc / 636 Lux at 6.6' / 2 m (Unmodified) 26 fc / 283 Lux at 9.8' / 3 m (Unmodified) 4300K: 1235 fc / 13,300 Lux at 3.3' / 1 m (with Reflector) 342 fc / 3690 Lux at 6.6' / 2 m (with Reflector) 158 fc / 1710 Lux at 9.8' / 3 m (with Reflector) 5600K: 219 fc / 2360 Lux at 3.3' / 1 m (Unmodified) 57 fc / 617 Lux at 6.6' / 2 m (Unmodified) 25 fc / 275 Lux at 9.8' / 3 m (Unmodified) 5600K: 1198 fc / 12,900 Lux at 3.3' / 1 m (with Reflector) 331 fc / 3570 Lux at 6.6' / 2 m (with Reflector) 154 fc / 1660 Lux at 9.8' / 3 m (with Reflector) 6500K: 215 fc / 2320 Lux at 3.3' / 1 m (Unmodified) 56 fc / 604 Lux at 6.6' / 2 m (Unmodified) 24 fc / 269 Lux at 9.8' / 3 m (Unmodified) 6500K: 1170 fc / 12,600 Lux at 3.3' / 1 m (with Reflector) 325 fc / 3500 Lux at 6.6' / 2 m (with Reflector) 150 fc / 1620 Lux at 9.8' / 3 m (with Reflector) 8500K: 203 fc / 2190 Lux at 3.3' / 1 m (Unmodified) 52 fc / 570 Lux at 6.6' / 2 m (Unmodified) 23 fc / 254 Lux at 9.8' / 3 m (Unmodified) 8500K: 1105 fc / 11,900 Lux at 3.3' / 1 m (with Reflector) 304 fc / 3280 Lux at 6.6' / 2 m (with Reflector) 141 fc / 1520 Lux at 9.8' / 3 m (with Reflector) 10000K: 196 fc / 2120 Lux at 3.3' / 1 m (Unmodified) 51 fc / 549 Lux at 6.6' / 2 m (Unmodified) 22 fc / 246 Lux at 9.8' / 3 m (Unmodified) 10000K: 1086 fc / 11,700 Lux at 3.3' / 1 m (with Reflector) 298 fc / 3210 Lux at 6.6' / 2 m (with Reflector) 138 fc / 1490 Lux at 9.8' / 3 m (with Reflector)
Color Temperature	1800 to 10,000K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 95 TLCI 95
Dimming	App-Controlled / Built-In Dimmer • 0 to 100%
Cooling System	Fan
Built-In Flash	No
Preprogrammed Effects	Yes
Umbrella Mount	No
Front Accessory Mount	Proprietary

Connectivity

Wireless Remote Control Type	Bluetooth
Mobile App Compatible	Yes: Android & iOS App Name: Godox Light Functionality: Remote Control
Wireless Range	98.4' / 30 m (Bluetooth)

Power & I/O

Power Source	AC to DC Adapter (Included) Battery (Not Included) USB Power (Cable Not Included)
Inputs/Outputs	1x USB-C Power Input 1x Barrel / Coax Power Input (20 VDC at 6 A)
Battery Plate Type	1x V-Mount (Not Included) 2x Sony L-Series / NP-F (Not Included)
Battery	1x V-Mount Rechargeable (Not Included) or 2x Sony-Type L-Series / NP-F Rechargeable (Not Included)
Input Power	20 VDC at 6 A
Included Adapter / Cable	1x USA Type-A/B to Barrel / Coax AC to DC Adapter
Inline Switch	Yes
Power Pass-Thru	No
Power Consumption	110 W

Mounting

Fixture Mounting	1x 1/4"-20 Female Thread
Included Adapter	1x Swivel Mount: 5/8" Receiver to 1/4"-20 Male Screw

General

Display	Yes
Environmental Resistance	No
Operating Conditions	14 to 104°F / -10 to 40°C
Dimensions	4.8 x 4.33 x 1.81" / 12.19 x 11 x 4.6 cm (Fixture)
Weight	1 lb / 465 g (Fixture)

Godox Lens Reflector for ML100Bi (36°)

Key Specs

Item Type	Standard/General Purpose Reflector
Interior Color	Silver
Light Compatibility	Direct Attachment (Requires No Bracket/Speed Ring) with Godox Mount: For Godox ML100Bi
Accepts Grids	No

Color	White
Interior Color	Silver
Light Compatibility	Direct Attachment (Requires No Bracket/Speed Ring) with Godox Mount: For Godox ML100Bi
Accepts Grids	No
Beam Angle	36°
Maximum Wattage	No Maximum

Godox BG02 Battery Grip

General

Battery Runtime	50 to 90 Minutes
Operating Temperature	32 to 113°F / 0 to 45°C
Dimensions	9.37 x 2.13 x 1.77" / 23.8 x 5.41 x 4.5 cm
Weight	1.4 lb / 636 g

Battery

Battery Capacity	6600 mAh / 95.04 Wh
Chemistry	Lithium
Output Voltage	14.4 VDC
