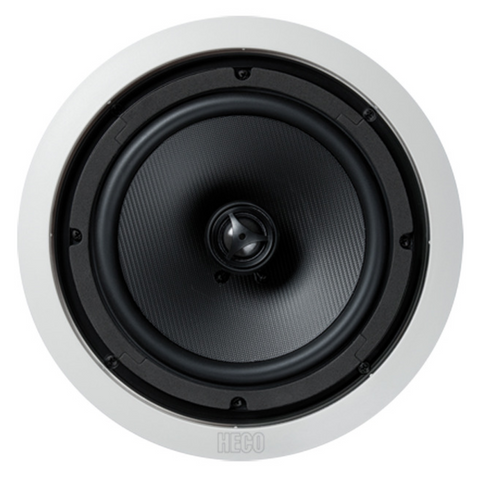

HECO INC 82 is the largest model in the Install Basic series. Its nominal diameter of 200 mm enables a powerful reproduction of the bass range and a high maximum volume. The waterproof textured polypropylene cone and the specially coated fabric dome tweeter deliver a fully-fledged sound pattern in conjunction with a high-quality 2-way crossover. Its coaxial driver configuration makes it particularly suitable for ceiling installation. The pivoting tweeter and level adjustment option mean the acoustics can also be ideally adapted to the respective installation conditions. The grille, which can be removed for installation purposes, provides a seamless transition to the discreet mounting frame.
Features:
- Built-in loudspeakers
- Special clamping mechanism for easy installation
- Moisture-proof speaker system, suitable for use in humid rooms (bathroom)
- In-wall/in-ceiling loudspeaker
- Solid protection grille
- 25 mm tweeter
- 200 mm woofer
- Coated soft-dome fabric tweeter
- Crossover with high-quality components and 3 settings for the tweeter level
- Gold-plated push terminal
- Mounting dimensions (Ø) 237 mm
- Mounting depth 88 mm
Specifications:
- Built-in loudspeakers
- 200 mm woofer
- 25 mm tweeter
- Power Handling (RMS/Max) 100 / 180 watts
- Sensitivity (2.8V/1m) 91 dB
- Impedance 4 Ohms
- Frequency response 34 - 28.000 Hz
- Crossover frequencies 3.600 Hz
- Recommended Amplifier Output 30 - 180 Watts
- Outer Dimensions Ø 271 mm
- Mounting dimensions (Ø) 237 mm
- Mounting depth 88 mm
