The Pyro Ultra is a next-generation wireless video transmission system designed for professional production environments. Featuring true 4K60 transmission, ultra-low latency, and unlimited receiver connectivity, it delivers exceptional flexibility and performance on set.

Powered by Hollyland’s proprietary TWiFi technology, Pyro Ultra ensures stable, long-range transmission with seamless integration across the entire Pyro ecosystem.

Key Features

Unlimited Monitoring Capability

One transmitter connects to unlimited receivers

Stable performance recommended for up to 20 receivers

Ideal for large-scale productions and multi-crew setups

True 4K60 Video Transmission

Supports 4K60 video at up to 12 Mbps via HDMI

Delivers sharp, cinematic image quality with excellent detail

Ultra-Low Latency (Focus Mode)

Latency as low as 20ms

Designed for precise focus pulling and real-time monitoring

Long-Range Transmission

Up to 1.5 km (4,900 ft) line-of-sight

Automatic frequency hopping for stable, interference-free signal

Broadcast Mode

Enables real-time monitoring on unlimited receivers

Standard mode supports up to 6 devices (4 RX + 2 apps)

Advanced Technology

TWiFi Transmission Technology

Combines 2.4GHz + 5GHz into a stronger, more stable signal

Enhanced reliability in crowded wireless environments

DFS Support

Access to additional frequency bands for improved flexibility

Optimised for use in regulated regions

Streaming & Workflow Integration

Flexible Streaming Options

Supports UVC and RTMP streaming

Up to 4K60 capture (UVC) / 1080p60 (RTMP)

Plug-and-play for live production and remote workflows

Pyro Ecosystem Compatibility

Works with Pyro H, Pyro S, Pyro 7, Pyro 5, and Vcore (for details, please refer to official website.)

Easily expand or integrate into existing setups

Professional Monitoring Tools

Freeze Frame Function

Automatically holds last frame during signal loss

Option to display custom logo/image

Adaptive Output Resolution

Automatically adjusts output to match display devices

Ensures compatibility across mixed setups

Connectivity

HDMI & SDI input/output

Supports fractional frame rates

4K60 HDMI loop-out for local monitoring

Why Choose Pyro Ultra?

Unlimited receiver connectivity

True 4K60 transmission

Ultra-low latency performance

Long-range, stable wireless system

Seamless ecosystem integration

Hollyland Pyro Ultra – Specifications

System Overview

Configuration: 1 Receiver Only

Transmission Range: Up to 4,900 ft (1.5 km) LOS

Latency: As low as 20 ms

Frequency Band: 2.4GHz & 5GHz (Dual-Band)

Bitrate: Up to 12 Mbps

Streaming: UVC / RTMP supported

Wireless Stability: Auto Frequency Hopping

Channel Scan: Supported on receiver

Monitoring Capacity

Non-Broadcast Mode:

1 Transmitter → 2 Mobile Apps + 4 Receivers

Broadcast Mode:

1 Transmitter → Unlimited Receivers

Receiver Interfaces

HDMI Output ×1

3G SDI Output ×1

USB-C (Type-C) ×1

Power Options

DC Input: 6V–16V

V-Mount Battery (on receiver)

Video Output Formats (Receiver)

HDMI Output

720p: 50 / 59.94 / 60

1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60

4K (3840×2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60

3G SDI Output

720p: 50 / 59.94 / 60

1080i: 50 / 59.94 / 60

1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 60

Key Highlights

True 4K60 wireless transmission

Ultra-low latency performance

Long-range, stable signal

Flexible multi-device monitoring

Professional HDMI & SDI connectivity

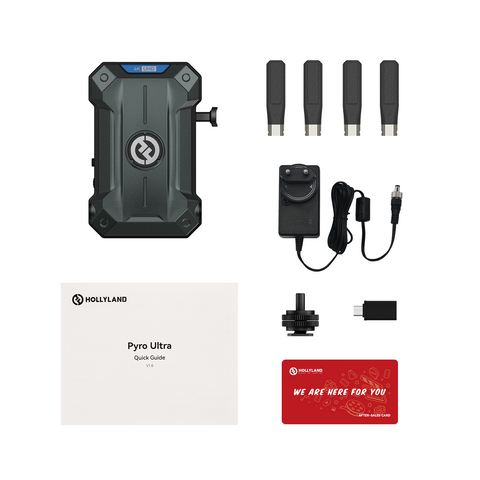

What's in the box:

1 x Hollyland Pyro Ultra Receiver

4 x Hollyland Pyro Ultra Quick Install Antennas

1 x Hollyland DC Power Adaptor

1 x Hollyland USB-A to USB-Type C Convertor

1 x Hollyland Cold Show Mount

Key Features

Unlimited Monitoring Capability One transmitter connects to unlimited receivers Stable performance recommended for up to 20 receivers Ideal for large-scale productions and multi-crew setups

True 4K60 Video Transmission Supports 4K60 video at up to 12 Mbps via HDMI Delivers sharp, cinematic image quality with excellent detail

Ultra-Low Latency (Focus Mode) Latency as low as 20ms Designed for precise focus pulling and real-time monitoring

Long-Range Transmission Up to 1.5 km (4,900 ft) line-of-sight Automatic frequency hopping for stable, interference-free signal

Broadcast Mode Enables real-time monitoring on unlimited receivers Standard mode supports up to 6 devices (4 RX + 2 apps)

Advanced Technology

TWiFi Transmission Technology Combines 2.4GHz + 5GHz into a stronger, more stable signal Enhanced reliability in crowded wireless environments

DFS Support Access to additional frequency bands for improved flexibility Optimised for use in regulated regions

Streaming & Workflow Integration

Flexible Streaming Options Supports UVC and RTMP streaming Up to 4K60 capture (UVC) / 1080p60 (RTMP) Plug-and-play for live production and remote workflows

Pyro Ecosystem Compatibility Works with Pyro H, Pyro S, Pyro 7, Pyro 5, and Vcore (for details, please refer to official website.) Easily expand or integrate into existing setups

Professional Monitoring Tools

Freeze Frame Function Automatically holds last frame during signal loss Option to display custom logo/image

Adaptive Output Resolution Automatically adjusts output to match display devices Ensures compatibility across mixed setups

Connectivity HDMI & SDI input/output Supports fractional frame rates 4K60 HDMI loop-out for local monitoring

Why Choose Pyro Ultra? Unlimited receiver connectivity True 4K60 transmission Ultra-low latency performance Long-range, stable wireless system Seamless ecosystem integration
