Features

Portable Wireless Tally System
4 Tally Lights Included
Connect Tally Lights up to 2600' Away
Up to 16 Channels Supported
Smart Sequence Learning
Adaptive Frequency Hopping
Detachable Battery with 8-Hour Runtime
DB25, RJ45 & USB-C Connectivity
Tally Light & Battery Weigh Only 3.5 oz
Hard Shell Case Included

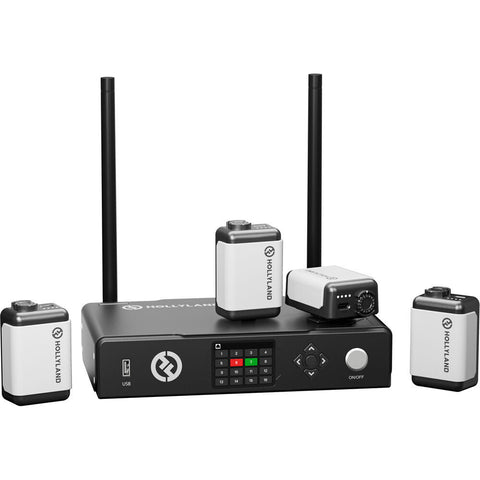

This Wireless Tally System from Hollyland is a portable, complete tally solution that includes four tally lights that can be connected up to 2600' away from the wireless host unit. Equipped with multiple ports that provide DB25, RJ45, and USB-C connectivity for compatibility with a wide range of switchers, the system boasts a powerful smart sequence learning function, adaptive frequency hopping, and support for up to 16 channels for future expansion of the system.

The sequence learning function of the system enables users to easily connect any switcher operating with high or low voltage levels to the system, employing a standard tally cable for wide switcher compatibility. Frequency hopping facilitates the detection of interference, enabling the system to automatically hop to a channel with less interference for a more stable and reliable transmission. A detachable lithium-ion battery pack included with each tally light provides up to eight hours of uninterrupted operation, and a hard-shell case is included for easy transport and storage.

Specifications:

General

Compatibility	Hollyland Wireless Tally System
Max Transmission Distance	2600' / 800 m
Sensitivity	<-115 dBm
Delay	<150 ms

Display

Panel Type	Not Specified by Manufacturer
Display Size	Not Specified by Manufacturer
Touchscreen	No

Inputs / Outputs

USB I/O	1 x USB-A Female Input/Output 1 x USB-C Female Input/Output
Other I/O	1 x RJ45 Port for Tally Input 1 x RJ45 Port for Switcher Loop Out 1 x DB25 Port for Tally Input 2 x Antenna Connector

Wireless

2.4 GHz Radio/RF
*Built-In

Power

Power Source

AC Adapter with Power Brick (Included)

Environmental

Operating Temperature	32 to 113°F / 0 to 45°C
Storage Temperature	14 to 140°F / -10 to 60°C

Physical

Color	Black
Dimensions	9.2 x 5.6 x 2" / 232.8 x 142.5 x 50.1 mm
Weight	2.6 lb / 1.2 kg

Hollyland Tally Light Specs

General

Compatibility	Hollyland Wireless Tally System
Max Transmission Distance	2,600' / 800 m
Sensitivity	<-115 dBm
Delay	<150 ms
Modulation	LORA

Wireless

2.4 GHz Radio/RF
*Built-In

Battery

Battery Chemistry	Lithium-Ion
Maximum Battery Life	8 Hours

Environmental

Operating Temperature	32 to 113°F / 0 to 45°C
Storage Temperature	14 to 140°F / -10 to 60°C

Physical

Dimensions	3.1 x 2 x 1.5" / 77.8 x 50.5 x 37.4 mm
Weight	3.5 oz / 98.5 g (with Battery)

Hollyland Hard-Shell Case For Wireless Tally System Specs

General

Compatibility

Hollyland Wireless Tally System

Physical

Color	Black
Dimensions	20.3 x 13.8 x 8.5" / 515 x 350 x 215 mm
Weight	Not Specified by Manufacturer

Hollyland Antenna For Wireless Tally System (Pair) Specs

General

Compatibility	Hollyland Wireless Tally System
Gain	4 dBi

Physical

Color	Black
Dimensions	10.4 x 3.9 x 1" / 265 x 100 x 25 mm
Weight	4.1 oz / 115 g

Hollyland 12V 2A DC 2.1mm Power Adapter Specs

General

Compatibility

Hollyland Wireless Tally System

Power

Power Source	AC Adapter with Power Brick
Power I/O	1x Barrel Output
Center Tip Polarity	Not Specified by Manufacturer
AC Input Power	Not Specified by Manufacturer
DC Input Power	12 VDC at 2 A
Maximum Power Output	Not Specified by Manufacturer

Physical

Quantity	1
Color	Black
Dimensions	8.5 x 5.2 x 0" / 215 x 132 x 0.1 mm
Weight	5.29 oz / 150 g

What's in the box:

1 x Hollyland Tally Station

4 x Hollyland Tally Light

4 x Battery

1 x Battery Charger

1 x Carry Case
