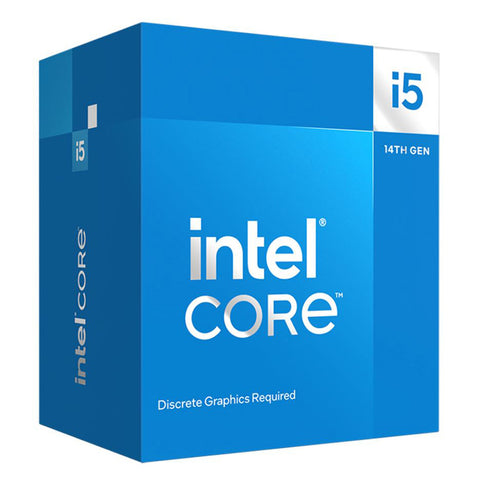

Intel i5 14400F CPU 3.5GHz (4.7GHz Turbo) 14th Gen LGA1700 10-Cores 16-Threads 29.5MB 65W Graphics Card Required Retail Raptor Lake with Fan

Essentials

• Product Collection Intel® Core™ i5 Processors (14th gen)
• Code Name Products formerly Raptor Lake

CPU Specifications

• Total Cores 10
• # of Performance-cores 6
• # of Efficient-cores 4
• Total Threads 16
• Max Turbo Frequency 4.7 GHz
• Performance-core Max Turbo Frequency 4.7 GHz
• Efficient-core Max Turbo Frequency 3.5 GHz
• Performance-core Base Frequency 2.5 GHz
• Efficient-core Base Frequency 1.8 GHz
• Cache 20 MB Intel® Smart Cache
• Total L2 Cache 9.5 MB
• Processor Base Power 65 W
• Maximum Turbo Power 148 W

Memory Specifications

• Max Memory Size (dependent on memory type) 192 GB
• Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
• Max # of Memory Channels 2
• Max Memory Bandwidth 76.8 GB/s

Expansion Options

• Direct Media Interface (DMI) Revision 4
• Max # of DMI Lanes 8
• Scalability 1S Only
• PCI Express Revision 5.0 and 4.0
• PCI Express Configurations ‡ Up to 1x16+4 | 2x8+4
• Max # of PCI Express Lanes 20

Package Specifications

• Sockets Supported FCLGA1700
• Max CPU Configuration 1
• Thermal Solution Specification PCG 2020C
• TJUNCTION 100°C
• Package Size 45.0 mm x 37.5 mm
