Seamless Overhead Immersion: The Ultimate Dolby Atmos Elevation Speaker Pair for Studio 8

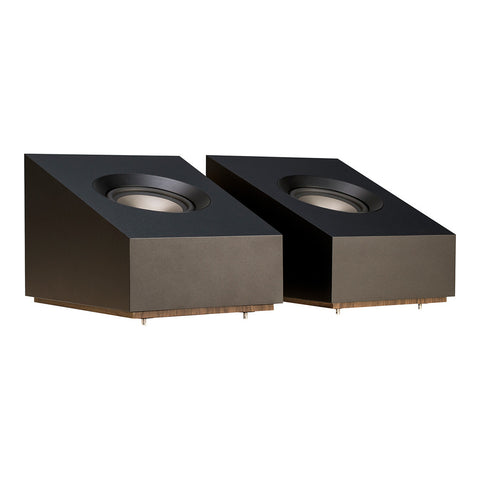

The Jamo S 8 ATM is a dedicated pair of Dolby Atmos elevation loudspeakers engineered to add captivating three-dimensional overhead sound to compatible Studio 8 series home theater setups. Designed with an angled, upward-firing 4-inch polyfiber driver, these modules project height sound effects upward to reflect off the ceiling down to the listening position, creating a fully immersive hemisphere of cinema sound. Utilizing an innovative patent-pending conductive mounting system, the S 8 ATM attaches directly onto the top panel of Jamo S 809, S 807, or S 803 speakers without visible cables, maintaining clean Scandinavian lines and clutter-free aesthetics.
- True Dolby Atmos Elevation Acoustics: Built to conform strictly with Dolby Atmos elevation directivity and frequency specifications, reflecting overhead ambient effects and sound objects off the ceiling with pinpoint accuracy.
- Wire-Free Integrated Fastening System: Features patent-pending conductive metal feet that insert directly into top contact receptacles on compatible Studio 8 speakers, passing the audio signal without exposed speaker wire running up the cabinet.
- 4-Inch Aluminized Polyfiber Driver: High-output, lightweight driver cone delivers clean, articulate, and dynamic overhead effects with low distortion.
- Acoustic Suspension Sealed Enclosure: Sealed MDF cabinet architecture eliminates port noise and ensures controlled, precise transient response for directional sound objects.
- Fully Magnetic Seamless Linen Grilles: Mounts flush without visible peg holes or push pins, featuring heavy-weave textured tweed fabric for an elegant, modern European look.
- Architectural Studio 8 Alignment: Matches the cabinet contours, depth, and finish options of compatible Jamo Studio 8 models for a cohesive, factory-integrated appearance.
Specification
- Speaker Type: Dolby Atmos Enabled Elevation Add-On Loudspeaker (Pair)
- Acoustic Design: Upward-Firing Sealed Enclosure (Acoustic Suspension)
- Frequency Response: Conforms to Dolby Atmos Specification
- Nominal Impedance: 8 Ohms
- Sensitivity: Conforms to Dolby Atmos Specification
- Continuous Power Handling (RMS): 50 Watts
- Peak Power Handling: 100 Watts
- Full-Range Driver: 102 mm (4") Polyfiber Woofer with Rubber Surround
- Input Terminals: Integrated Conductive Metal Feet (Proprietary Connection System)
- Hardware Compatibility: Specifically designed for Jamo S 809, S 807, and S 803 loudspeakers
- Enclosure Material: High-Density MDF with Seamless Linen Magnetic Grille
- Dimensions (Each): 180 mm x 191 mm x 242 mm / 7.10" x 7.52" x 9.53" (H x W x D)
- Product Net Weight (Each): 2.3 kg / 5.0 lbs
-
What's in the Box:
- 2x Jamo S 8 ATM Dolby Atmos Elevation Speakers
- 2x Magnetic Linen Fabric Grilles
- 1x User Manual and Installation Guide
