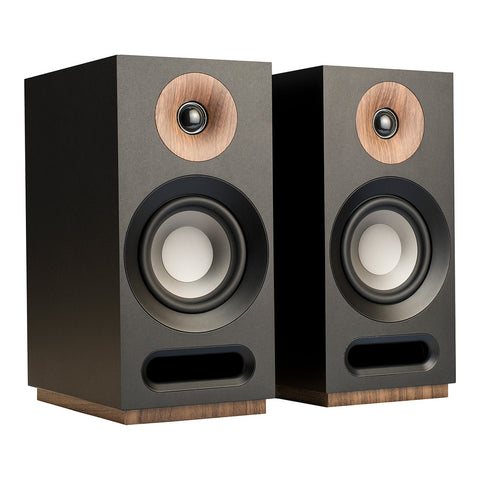

Contemporary Scandinavian Design with Dolby Atmos Readiness: The Ultimate High-Fidelity Bookshelf Speaker Pair
The Jamo S 803 is a premium pair of high-performance bookshelf loudspeakers from the Studio 8 series, engineered to deliver expansive dynamic range and balanced acoustic fidelity in a striking modern European design. Featuring a 1-inch soft dome tweeter loaded into a custom WaveGuide alongside a 5-inch aluminized polyfiber woofer, these speakers provide articulate high frequencies and impactful, low-distortion bass. Equipped with an innovative front-firing slot port and patent-pending top-cabinet connection points for seamless Dolby Atmos elevation module integration, the S 803 pair serves as an ideal solution for audiophile stereo systems and high-end home theaters alike.
- Seamless Dolby Atmos Integration: Features patent-pending metal fastener contacts on top of the cabinet to mount and power optional Jamo S 8 ATM elevation speakers without visible external wires.
- Integrated WaveGuide Acoustic Technology: Focuses high frequencies from the 1-inch soft dome tweeter to deliver wide, dynamic dispersion and lifelike vocal clarity across the listening area.
- 5-Inch Aluminized Polyfiber Woofer: Lightweight, rigid driver cone engineered to produce articulate, punchy bass and clean midrange reproduction with low distortion.
- Front-Firing Slot Bass-Reflex Port: Maximizes low-end extension and acoustic efficiency while allowing flexible placement directly against walls or inside shelving without boominess.
- Fully Magnetic Seamless Linen Grilles: Fastens without visible mounting holes or push pins, offering a clean contemporary look with heavy-weave tweed fabric.
- Dual-Input Binding Post Terminal Cup: Includes standard speaker terminals plus dedicated pass-through terminals to feed height-channel signals directly to the top-mounted Atmos module.
Specification
- Speaker Type: 2-Way Bass Reflex Bookshelf Loudspeaker (Pair)
- Frequency Response: 57 Hz - 26,000 Hz (+/- 3dB)
- Nominal Impedance: 8 Ohms
- Sensitivity: 87 dB (2.83V / 1m)
- Continuous Power Handling (RMS): 80 Watts
- Peak Power Handling: 160 Watts
- High-Frequency Driver: 25 mm (1") Soft Dome Tweeter with Integrated WaveGuide
- Low-Frequency Driver: 127 mm (5") Aluminized Polyfiber Woofer
- Crossover Frequency: 2,000 Hz
- Enclosure Material: High-Density MDF with Front-Firing Slot Port
- Elevation Module Readiness: Integrated Top Conductive Fasteners for Jamo S 8 ATM Height Speakers
- Speaker Dimensions (Each): 353 mm x 191 mm x 252 mm / 13.90" x 7.52" x 9.92" (H x W x D)
- Product Net Weight (Each): 5.4 kg / 11.9 lbs
-
What's in the Box:
- 2x Jamo S 803 Bookshelf Speakers
- 2x Magnetic Linen Fabric Grilles
- 8x Adhesive Rubber Isolation Feet
- 1x User Manual and Warranty Documentation
