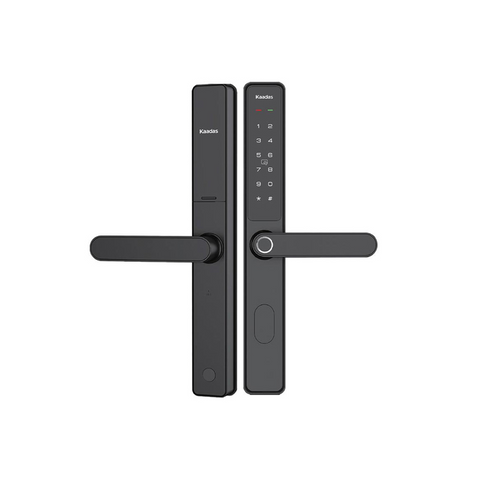

The Kaadas S10-5W is a slim, Wi-Fi-enabled smart lock designed for narrow frame doors (25:75 mm). It offers multiple access optionsfingerprint, PIN, RFID card, and mechanical keyand supports remote control via app. With features like fake PIN entry, lockout mode, temporary access codes, and a touch-to-unlock indoor handle, it combines convenience, security, and modern design in one compact solution.

Key Features:

Slim Design : Ideal for narrow frame doors ranging from 25 mm to 75 mm, offering a sleek and space-saving profile.
Multiple Access Methods : Supports fingerprint recognition, PIN codes, RFID cards, and traditional keys for flexible entry options.
Wi-Fi Connectivity : Built-in Wi-Fi enables remote control and monitoring through a dedicated mobile app.
Enhanced Security Features
- Fake PIN Code: Allows entry of random digits before or after the real code to protect against observation.
- Lockout Mode: Temporarily disables the keypad after multiple incorrect attempts to deter intruders.
Indoor Sensor Handle : Touch-to-unlock feature offers quick and convenient access from the inside.
Temporary Access Codes : Create time-limited codes for guests or service providers without compromising security.
Comprehensive Management : Manage multiple locks, review time-stamped access logs, and share app control with other users remotely.

Model: S10-5W
Main Material: Aluminum Alloy
Fingerprint Sensor: Semiconductor
Fingerprint Quantity: 20
Card Type: Mifare / 13.56MHz
Card Quantity: 100
Code Length: 6:12
Code Quantity: 21 (1 Master Code; 20 User Codes)
Door Thickness: 25:55mm
CE Mortise: Optional
Keypad Type: Touchpad
Color: Black
Handling: Universal
Working Voltage: DC 6V
Battery: 4 x AA Alkaline Batteries
Working Temperature: -20 °C to 60 °C
Emergency Power: 5V Type-C
IoT Connection: Wi-Fi

* DISCLAIMER: Design, features and specifications subject to change without notice. Some features in videos on the Internet may not be available on all models, please contact us for the TECHNICAL SPECIFICATIONS for a complete list of features by model. This feature list is for reference only, please contact us to verify features and functionality.
