STEREO SOUND FROM A SINGLE SPEAKER

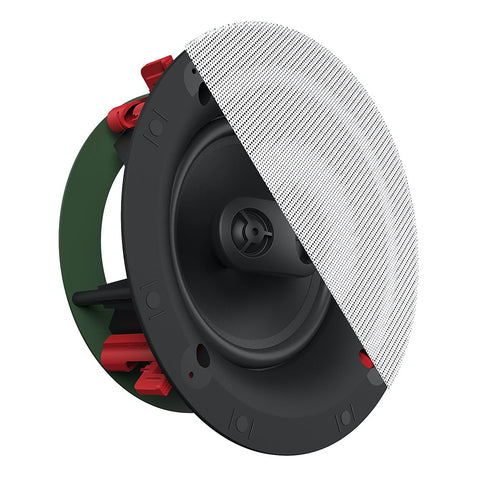

Using the same acoustic voicing and design principles of our more premium architectural and box speaker lines, the all new Klipsch Designer series provides true Klipsch power and performance. With a dual voice coil 6.5” Polypropylene woofer and two .75” Silk Dome tweeters, the DS-160CSM brings dynamic, powerful, detailed sound to your distributed audio system - for true stereo sound in spaces where two speakers aren’t possible.

PATENT-PENDING SKYHOOK™ TOOL-FREE INSTALLATION SYSTEM
The exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. This fast, easy installation system reduces install time by up to 75%.

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

FREQUENCY RANGE: 77Hz - 20kHz +/- 3dB
HIGH FREQUENCY DRIVER: Dual .75" (1.9cm) Silk Dome Tweeters
LOW FREQUENCY DRIVER: 6.5” (16.51cm) Dual Voice Coil Polypropylene Woofer
SENSITIVITY: 91 dB @ 2.83V / 1m
COVERAGE ANGLE: 160°
POWER HANDLING: 50W RMS / 200W RMS
IMPEDANCE: 8 Ohm Compatible
ENCLOSURE MATERIAL/TYPE: ABS/Infinite Baffle
FINISH: Black Baffle/Frame, White Paintable Grille
PRODUCT WEIGHT: 3.18kg
INCLUDED IN BOX: Flat Paintable Magnetic Grille

Speaker Diameter: 9.3" (23.62cm)
Cut Out Diameter: 7.99" (20.29cm)
Mounting Depth: 3.99" (10.13cm)

Includes:

• 1x Klipsch DS-160CSM 6.5" Stereo In-Ceiling Speaker
