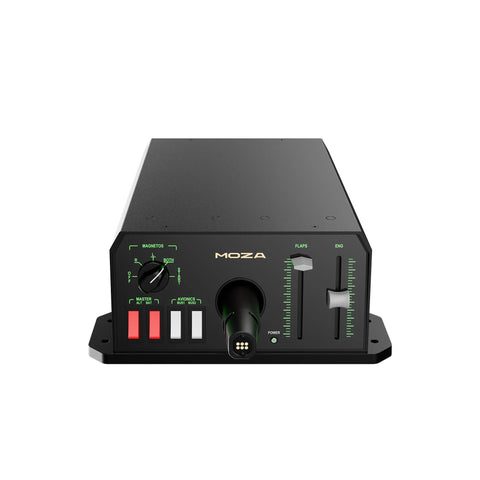

The MOZA AY90 Force Feedback Yoke Base delivers 4.2 Nm of roll torque, up to 90 N of push-pull force, 180° of roll rotation, and 95 mm of pitch travel for realistic aircraft control. Its 15-bit magnetic encoder, integrated control panel, and desktop or 80/20-compatible cockpit mounting make it a flexible base for flight simulation.

* MOZA MFY Pro Yoke Showin in Video Sold Separately.

Key Features

4.2 Nm Torque & 90 N Push-Pull Force
Deliver total realism with a full force feedback yoke base. Featuring 4.2 Nm of roll torque, 90 N (9 kg) of push-pull force, and 95 mm of pitch travel for an authentic, responsive flying experience.

180° Full Roll Rotation
±90° roll axis travel, covering the full range of motion for any yoke.

Lightweight Construction
Built with a high-strength composite housing for maximum durability. Its compact and lightweight profile is specifically designed for versatile use in cockpit rigs and desktop setups.

Multi-Type Input Signals
The front panel features an array of multi-position rotary knobs, rocker switches, and sliders, all inspired by classic GA aircraft cockpit layouts. For ultimate flexibility, every input is fully remappable within your flight simulator.

Aluminium Alloy Quick-Release
Featuring a high-grade aluminium alloy quick-release mechanism that allows for seamless, tool-free swaps. Designed for maximum stability, it ensures a secure, play-free fit that stands up to the most demanding manoeuvres.

Custom RGB Lighting
Featuring 16.7-million colour RGB lighting strip, capable of displaying real-time engine RPM, throttle position, and other telemetry data. Fully customizable to match your cockpit setup

High-Precision Encoder
Equipped with a 15-bit magnetic encoder chip, ensuring ultra-precise, realistic input tracking for every single interaction.

Full Software Integration
All buttons and knobs configurable via MOZA Cockpit. Simple setup with fully customizable function mapping.

Third-Party Accessory Expansion
The top of the base features dedicated mounting points, designed to support custom gauges, screens, and various peripherals. Expand your setup further with adapters easily available through 3D printing or third-party providers.

Broad Game Compatibility
Compatible with X-Plane, Microsoft Flight Simulator, DCS World, War Thunder, and other major titles.

Rich Force Feedback Effects
Experience high-fidelity force feedback that accurately reproduces every nuance of flight—from engine vibration and ground roll to the unsettling tension of stall buffet. Whether it's autopilot engagement or realistic trim resistance, feel every detail through precise, real-time haptic response.

Flexible Mounting Options
Compatible with desk clamp mounting and profile rail installation. Standard bolt holes for 80/20-style aluminium extrusion.

Technical Specifications

Dimensions: 325 x 252 x 111 mm
Housing Material: Carbon Fiber Reinforced Composite
Quick-Release Material: Aluminium Alloy
Button Cap Material: ABS
Weight: 4.5 kg
Roll Axis Travel: ±90°
5-Way Hat Switch: 1
Rocker Switches : 4
Slider Switches: 2
Power Input: 12V 6A
Torque Roll axis: 4.2 Nm | Pitch axis push-pull: 90 N
Motor Encoder: 15-bit magnetic encoder

What's in the box

MOZA AY90 Force Feedback Yoke Base
Power adapter
USB cable
User manual
Sticker
