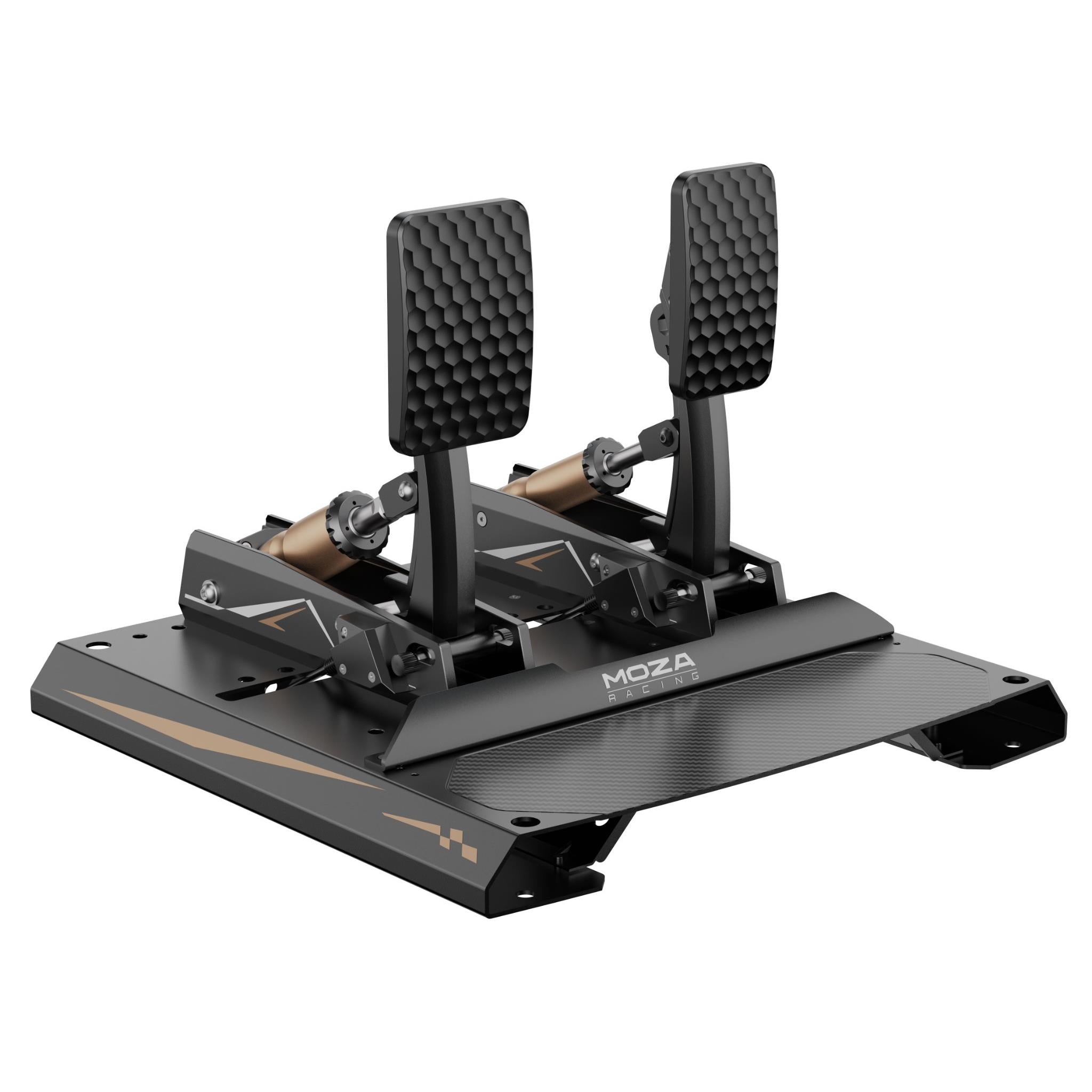

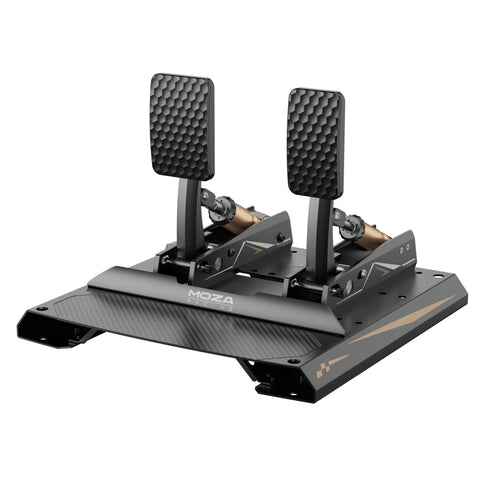

Introducing the MOZA CRP2 Load Cell Pedals crafted from CNC aerospace-grade aluminium with a carbon fibre heel plate, these pedals offer unmatched precision and durability. Featuring a 200kg load cell sensor and a 15-bit high-precision angle sensor, the CRP2 delivers accurate and responsive brake feel with up to 1,764 customization options, accommodating everything from road cars to F1-level performance. The tool-free adjustment system ensures quick, effortless tuning, while its sleek, minimalist design integrates seamlessly into any sim racing setup. With support for inverted mounting and full compatibility with PC and Xbox systems, the CRP2 pedals are engineered for serious sim racers seeking professional-grade performance.

• CNC Aerospace-grade Aluminium Construction
• Carbon Fibre Heel Plate
• 200K Load Cell Sensor
• 15-bit High-precision Angle Sensor
• 125 Combination Brake Pedal Damper
• Fully Adjustable Throttle and Clutch
• Smooth and Quiet Design
• Tool-free Adjustment
• Wide-range Adjustability
• Supports Inverted Mounting

Note: Standard set includes throttle and brake pedals. Clutch pedal sold separately.

Key Features

Minimalist Design
The CRP2 sim racing pedals feature a minimalist design with smooth curves and a sophisticated black and gold colour scheme, exuding competitive energy. The hexagonal design elements on the pedal face symbolize stability, balance, and versatility. Cleverly concealed wiring, springs, and pedal screws ensure a clean and aesthetically pleasing appearance.

CNC Aerospace-grade Aluminium Construction
Key components are made from aerospace-grade aluminium alloy, precision CNC-machined for exacting standards, and anodized for a sleek, durable finish. Precision die-casting and automotive-grade coating is used to ensure robustness and quality. The base is crafted from high-strength steel, designed to endure and handle intense forces during racing.

Carbon Fibre Heel Plate
The Carbon Fibre Heel Plate features a sleek 3K twill carbon fibre design, adding a sporty touch. Its surface provides moderate friction, ensuring precise control over heel positioning during intense racing sessions.

200KG Load Cell Sensor
The brake is equipped with a high quality and precise 200kg pressure sensor, covering nearly the entire braking force range of real racing cars. This ensures a strong connection between muscle memory and force application.

15-bit High-precision Angle Sensor
Using an industry-first patented sensor fusion algorithm, the system combines a 15-bit angle sensor with a load cell sensor. This innovative approach ensures exceptional brake input precision and allows for extremely accurate control of braking forces, enhancing muscle memory for consistent braking performance.

125 Combination Brake Pedal Damper
The standard brake features a damping block structure with several options for 55, 70, 80, and 98 hardness levels. This allows for 125 different brake pedal feel combinations, accommodating everything from basic road cars to formula racing cars.

Adjustable Throttle
The throttle uses a spring-enclosed design, with an extremely smooth guide rod that ensures a silky-smooth pedal feel. It comes with two springs of different resistance levels and allows for continuous force adjustment, making it possible to replicate the throttle resistance of almost any vehicle.

Three-stage Adjustable Clutch
The clutch pedal mimics the feel of a high-performance car with three distinct stages. The first stage offers short travel with light resistance. In the second stage, resistance increases sharply, similar to a clutch pressure plate spring. The third stage releases quickly, providing a satisfying snap. The clutch includes two springs with different resistance levels and offers continuous force adjustment, allowing it to replicate the clutch resistance of nearly any vehicle.

Quiet and Smooth
Thanks to the enclosed structure and the highly polished steel shaft, the brake and throttle operate smoothly and quietly. The soft cushioning at the limit points ensures excellent noise control.

Tool-free Adjustment
To accommodate frequent adjustments of brake, throttle, and clutch forces for different vehicles, we have designed a completely tool-free mechanism for changing damping blocks and springs and adjusting force levels. This patented system eliminates the need for wrenches or other tools for adjustments.

Adjustable Position and Height
Pedal distance, footrest position, and pedal face height (up to 30mm) are all adjustable, accommodating different foot sizes and preferences.

Ergonomic Design
The pedal surface features a biomimetic curved design that conforms to the arch of the foot, providing a snug fit for better force application and overall comfort.

Enhanced Compatibility
When using the Xbox-compatible ESX steering wheel, simply connect the CRP2 pedals directly to the base to set up the entire system for Xbox. The CRP2 pedals can also be connected directly to a PC or to the base.

Professional Software Support
In Pit House, you can monitor the pedal’s status, set the pedal travel and signal output curves, adjust electronic travel, and view real-time signal output curves. This powerful software ensures that the professional hardware performs to its fullest potential.

Supports Inverted Mounting
The pedals support inverted mounting, allowing them to replicate the design and ergonomic experience of road cars. This can be achieved using optional inverted components or custom mounting brackets.

Optional Performance Kit
The Performance Kit includes 10 springs, various damping blocks, and a metal block. Combined with the original damping blocks, it offers 1,764 possible pedal feel configurations, simulating the hard brake feel of top-tier race cars like F1 and F2, with nearly zero brake force response time.

SPECS

• Pedal Body Material: Aerospace-grade aluminium alloy
• Heel Plate Material: 3K twill carbon fibre
• Base Material: High-strength steel
• Load Cell Sensor Range: 0–200kg
• Brake Sensor: Load cell sensor and angle sensor
• Angle Sensor Resolution: 15-bit (32768 PPR)
• Brake Pedal Feel: 115 standard adjustments, 1764 optional configurations
• Throttle Adjustment: Two spring options with infinite adjustment
• Clutch Adjustment: Two spring options with infinite adjustment
• Brake Travel Adjustment: 15–20°
• Throttle Travel Adjustment: 15–23°
• Clutch Travel Adjustment: 15–25°
• Pedal Angle Adjustment: 0–15°
• Pedal Face Height Adjustment: Up to 30mm
• Footrest Adjustment: Up to 30mm
• Pedal Curve Adjustment: Adjustable
• Real-time Pedal Output Display: Adjustable
• Pedal Pressure Engagement Point: Adjustable
• Pedal Surface: Biomimetic curved
• Inverted Mounting Kit: Optional
