| Chipset | AMD X870E |
| CPU Socket | AM5 |
| Form Factor | ATX (10" x 12" / 244 x 305 mm) |
| OS Compatibility | Windows |
| Memory Capacity & Slots | 4x 288-Pin DDR5 Slots | Up to 256 GB | Dual Channel | Non-ECC Unbuffered | Max 8200 MT/s |
| Expansion Slots | 2x PCIe 5.0 x16 | 1x PCIe 4.0 x4 | 1x PCIe 3.0 x1 |
| M.2 Storage Slots | 1x M.2 2280/2260 (PCIe 5.0 x4) | 1x M.2 22110/2280 (PCIe 4.0 x4) | 1x M.2 2280/2260 (PCIe 4.0 x4) |
| SATA & RAID Support | 4x SATA III | RAID 0, 1, 5, 10 |
| Back Panel I/O | 1x USB4 C, 1x USB 3.2 Gen 2x2 C, 2x USB 3.2 Gen 2 A, 2x USB 3.0 A, 4x USB 2.0 A, 1x HDMI, 3x Audio, 1x 5GbE LAN, 2x Wi-Fi Ant, Flashback/CMOS |
| Internal USB Headers | 1x USB 3.2 Gen 2 Header (1x USB-C) | 2x USB 3.0 Headers (4x USB-A) | 3x USB 2.0 Headers (6x USB-A) |
| Fan & Liquid Cooling Headers | Air: 1x 4-Pin CPU, 6x 4-Pin System | Liquid: 1x 4-Pin Pump |
| Power Connectors | 1x 24-Pin Mainboard | 2x 12V-2X6 (12VHPWR) | 1x 8-Pin PCIe |
| Networking & Wireless | 5GbE LAN | Wi-Fi 7 (802.11be) Tri-Band 2x2 | Bluetooth 5.4 |
| Audio | Realtek ALC897 (7.1-Channel) Audio Codec |
| BIOS ROM | 512 Mb |
| Lighting Headers | 9x RGB Headers |
| Security | Chassis Intrusion, TPM Module |
| Packaging Info | Weight: 4.255 lb | Box Dimensions: 13.5 x 10.5 x 2.9" |
Description
Product specifications
- Chipset: AMD X870E
- CPU socket: AMD Socket AM5
- Contains button battery: Yes
- Motherboard form factor: ATX
MSI

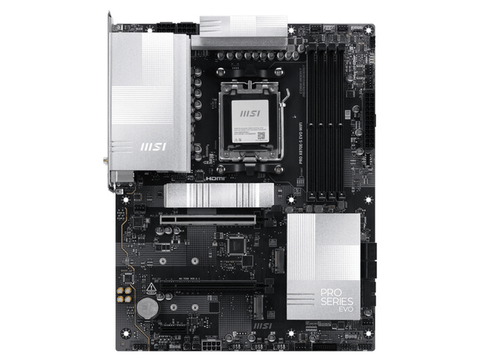

MSI PRO X870E-S EVO WIFI AM5 ATX Motherboard
Price:
$498
Key features
- X870E
- AM5
- Wi-Fi 7
Availability
Delivery available
