Input connectors

1x S-ATA (for 12V fans only), 1x 4-pin PWM

Max. power via S-ATA input

54 W

Max. power via 4-pin PWM input

24 W

Operating voltage

5-12 V

Operating temperature

-40 °C to +60 °C

Flammability class

UL-94 V-0

Safety standards

EN 62368-1, EN 55035, EN 55032, UL-507

Certifications

CE, UKCA, UL

Size

93x43x12.5 mm

Weight

31 g

Fan compatibility

All Noctua 12V and 5V fans, many third party fans

Scope of delivery

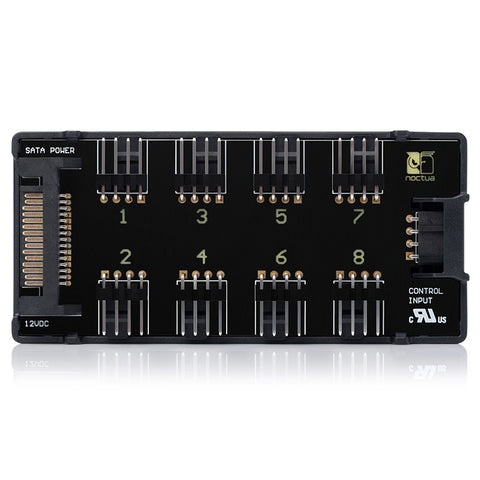

NA-FH1 fan hub

NA-EC1 4-pin PWM input cable

Notes

Caution: Do not place directly on hard disk drives, keep at least 5cm distance. When powering via the 4-pin input from a PC motherboard, please check your motherboard manual for the maximum current of the fan header and make sure not to exceed it.
