SPECIFICATIONS:

COOLER SPECIFICATION
Socket compatibility	Intel LGA1150, LGA1151, LGA1155, LGA1156, LGA1200, AMD AM4 with NM-AM4-L9aL9i
Height (without fan)	23 mm
Width (without fan)	95 mm
Depth (without fan)	95 mm
Weight (without fan)	320 g
Height (with fan)	37 mm
Width (with fan)	95 mm
Depth (with fan)	95 mm
Weight (with fan)	385 g
Material	Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR	59
Max. TDP	see NSPR
Fan compatibility	92x92x14mm, 92x92x25mm
Scope of delivery	NF-A9x14 PWM premium fan Low-Noise Adaptor (L.N.A.) NT-H1 high-grade thermal compound SecuFirm2 ¢ Mounting Kit Screws for 92x92x25mm fans Noctua Metal Case-Badge
FAN SPECIFICATION
Model	Noctua NF-A9x14 PWM
Bearing	SSO2
Max. rotational speed (+/- 10%)	2500 RPM
Max. rotational speed with L.N.A. (+/- 10%)	1800 RPM
Min. rotational speed @ 20% PWM (+/-20%)	600 RPM
Max. airflow	57,5 m ³/h
Max. airflow with L.N.A.	40,8 m ³/h
Max. acoustical noise	23,6 dB(A)
Max. acoustical noise with L.N.A.	14,8 dB(A)
Input power (max.)	2,52 W
Voltage range	12 V
MTTF	> 150.000 h

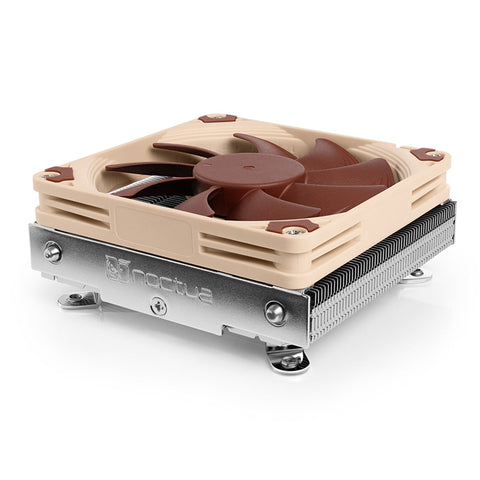

Notes and Warnings	The NH-L9i is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads. Please consult our CPU compatibility list to find out whether the NH-L9i is recommended for your CPU.
