FAN Specification
|
|
|
Size
|
40x40x20 mm |
|
Mounting hole
spacing
|
32x32 mm |
|
Connector & pin-configuration
|
4-pin PWM |
|
Cable length
|
20cm + 30cm NA-EC1 extension cable |
|
Bearing
|
SSO2 |
|
Blade geometry
|
A-Series with Flow Acceleration Channels |
|
Frame technology
|
AAO (Advanced Acoustic Optimisation) |
|
Rotational speed
(+/- 10%)
|
5000 RPM |
|
Rotational speed
with L.N.A. (+/- 10%)
|
4400 RPM |
|
Min. rotational
speed @ 20% PWM (+/-20%)
|
1200 RPM |
|
Airflow
|
9,4 m³/h |
|
Airflow with L.N.A.
|
8,3 m³/h |
|
Acoustical noise
|
14,9 dB(A) |
|
Acoustical noise
with L.N.A.
|
12,2 dB(A) |
|
Static pressure
|
2,26 mm H2O |
|
Static pressure
with L.N.A.
|
1,75 mm H2O |
|
Input power
(typical)
|
0,46 W |
|
Input power
(max.)
|
0,6 W |
|
Input current
(typical)
|
0,04 A |
|
Max. input
current
|
0,05 A |
|
Operating
voltage
|
12 V |
|
Voltage PWM signal
|
5 V |
|
MTTF
|
> 150.000 h |
|
Scope of
delivery
|
Low-Noise Adaptor (L.N.A.) |
| 4-pin y-cable | |
| 30cm extension cable | |
| OmniJoin™ adaptor set | |
| NA-AV3 anti-vibration mounts | |
| Fan screws | |
|
Warranty
|
6 years |
Description
Product specifications
- PC case accessory type: Case fans
- Contains button battery: No
NOCTUA

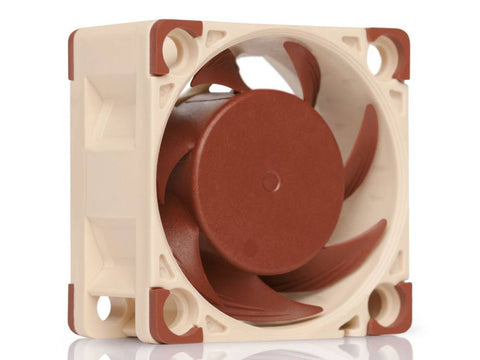

Noctua NF-A4x20 PWM 5000RPM 40mm Fan
Price:
$43
Key features
- 40mm
- 5000RPM
- 4-pin PWM
Getting your item
Delivery available
