SPECIFICATIONS:
|
COOLER SPECIFICATION |
|
|
Socket compatibility |
Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 |
|
Height (without fan) |
145 mm |
|
Width (without fan) |
125 mm |
|
Depth (without fan) |
113 mm |
|
Weight (without fan) |
700 g |
|
Height (with fan) |
145 mm |
|
Width (with fan) |
125 mm |
|
Depth (with fan) |
113 mm |
|
Weight (with fan) |
890 g |
|
Material |
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
|
NSPR |
148 |
|
Max. TDP |
see NSPR |
|
Fan compatibility |
NF-A12x25r (square-frame 120mm fans not supported) |
|
Scope of delivery |

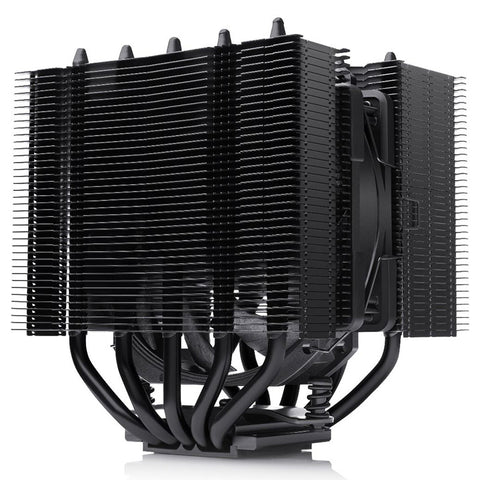

Black NH-D12L heatsink NF-A12x25r PWM chromax.black premium fan NA-RC14 Low-Noise Adaptor (L.N.A) NT-H1 high-grade thermal compound Black SecuFirm2â„¢ mounting kit Noctua metal case-badge |
|
FAN SPECIFICATION |
|
|
Model |
Noctua NF-A12x25r PWM chromax.black |
|
Bearing |
SSO2 |
|
Max. rotational speed (+/- 10%) |
2000 RPM |
|
Max. rotational speed with L.N.A. (+/- 10%) |
1700 RPM |
|
Min. rotational speed @ 20% PWM (+/-20%) |
450 RPM |
|
Max. airflow |
102,1 m³/h |
|
Max. airflow with L.N.A. |
84,5 m³/h |
|
Max. acoustical noise |
22,6 dB(A) |
|
Max. acoustical noise with L.N.A. |
18,8 dB(A) |
|
Airflow |
102.1 m³/h |
|
Airflow with L.N.A. |
84.5 m³/h |
|
Acoustical noise |
22.6 dB(A) |
|
Input power (typical) |
1.2 W |
|
Input power (max.) |
1.68 W |
|
Voltage range |
12 V |
|
MTTF |
> 150.000 h |
