SPECIFICATIONS:

COOLER SPECIFICATION
Socket compatibility	AMD AM4
Height (without fan)	23 mm
Width (without fan)	114 mm
Depth (without fan)	92 mm
Weight (without fan)	390 g
Height (with fan)	37 mm
Width (with fan)	114 mm
Depth (with fan)	92 mm
Weight (with fan)	465 g
Material	Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR	61
Max. TDP	see NSPR
Fan compatibility	92x92x14mm, 92x92x25mm
Scope of delivery	NF-A9x14 PWM premium fan Low-Noise Adaptor (L.N.A.) NT-H1 high-grade thermal compound SecuFirm2™ AM4 mounting kit Screws for 92x92x25mm fans Noctua metal case-badge
FAN SPECIFICATION
Model Noctua	NF-A9x14 PWM
Bearing	SSO2
Max. rotational speed (+/- 10%)	2500 RPM
Max. rotational speed with L.N.A. (+/- 10%)	1800 RPM
Min. rotational speed @ 20% PWM (+/-20%)	600 RPM
Max. airflow	57,5 m³/h
Max. airflow with L.N.A.	40,8 m³/h
Max. acoustical noise	23,6 dB(A)
Max. acoustical noise with L.N.A.	14,8 dB(A)
Input power (max.)	2,52 W
Voltage range	12 V
MTTF	> 150.000 h
OTHERS

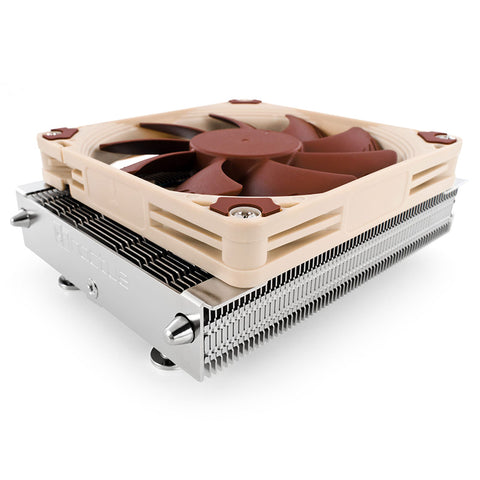

Notes and warnings	The NH-L9a-AM4 is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads. Please consult our CPU compatibility list to find out whether the NH-L9a-AM4 is recommended for your CPU/APU.
