Socket compatibility

Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4

(Current socket compatibility applies to all coolers purchased since Q4 2021. For older coolers, please refer to this chart.)

Height (without fan)

158 mm

Width (without fan)

125 mm

Depth (without fan)

45 mm

Height (with fan)

158 mm

Width (with fan)

125 mm

Depth (with fan)

71 mm

Weight (with fan)

710 g

Material

Nickel plated Copper (base and heat-pipes), aluminium (cooling fins)

NSPR

129

Max. TDP

see NSPR

Fan compatibility

120x120x25

Scope of delivery

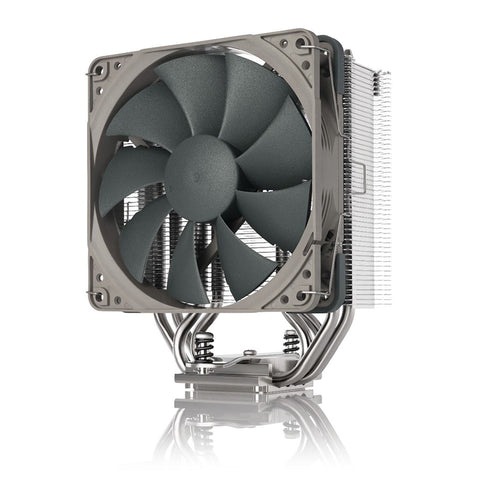

NH-U12S redux heatsink

NF-P12 redux-1700 PWM fan

4x NA-AVP1 grey anti-vibration pads

Fan mounting clips (one pair)

NT-H1 high-grade thermal compound (pre-applied)

SecuFirm2 „¢ mounting kit

FAN

Model

NF-P12 redux-1700 PWM

Bearing

SSO

Max. rotational speed (+/- 10%)

1700 RPM

Min. rotational speed @ 20% PWM (+/-20%)

450 RPM

Max. airflow

120,2 m ³/h

Max. acoustical noise

25,1 dB(A)

Voltage range

12 V

MTTF

> 150.000 h
