Features

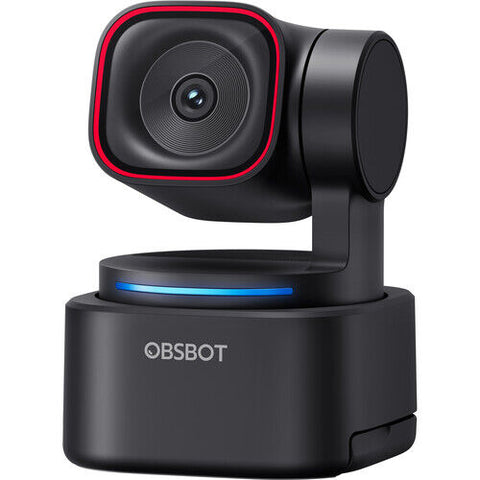

Compact 4K USB PTZ Webcam with 4x Zoom
48MP 1/2" CMOS
Spatial, Omni & Directional Audio
AI Tracking, Desk & Whiteboard Modes
79.1° (4:3) / 72° (16:9) Field of View
Gesture & Voice Control
Intelligent Directional Mic System
USB 2.0 Host Connection | Built-In Stand
Works with OBSBOT Center & Live Software
Windows 10 & macOS 11 or Later

Featuring a 1/2" 48MP CMOS image sensor, the Tiny 3 Lite can record UHD 4K video at 30 fps with HDR support, which allows it to adapt to a wide range of lighting conditions. Or switch to Full HD at 120 fps mode to capture fast actions. You can also choose between a 16:9 aspect ratio for a 72° diagonal field of view or 4:3 with an 79.1° FOV. With an Intelligent Directional Mic system comprised of one omnidirectional and two directional microphones, you can configure a variety of audio settings to fit personal and group meetings. The USB-C 2.0 connector and USB-A cable adapter make it easy to connect the webcam to your Windows or Mac computer, where you can use the free OBSBOT software to configure and manage your webcam. Use the integrated mount to place the Tiny 3 Lite on top of your monitor or tripod.

Audio Modes

Except for Pure Audio Mode, all modes incorporate automatic gain and AI noise reduction. Only Smart Omni Mode is supported when Full HD 1080p, 120 fps video is enabled.

Pure Audio Mode: Independent left and right channel output, with audio signals processed without any modification.
Spatial Audio Mode: Independent left and right channel output, enhancing the spatial positioning of sound and creating a surround sense through AI noise reduction and dynamic gain technology.
Smart Omni Mode: Uniformly captures sounds from all directions, intelligently balances human voices and environmental sounds, suitable for scenarios such as multi-person meetings and environmental sound recording.
Directional Mode: Precisely captures sounds directly in front, automatically suppresses surrounding human voices and environmental noise, ensuring that speech in meetings or live broadcasts is more prominent.
Dual-Directional Mode: Precisely captures sounds from the front/rear, automatically filters sounds from both sides, suitable for scenarios such as face-to-face interviews.

4K Video

Combining the 1/1.2" CMOS and OBSBOT camera calibration technology, the Tiny 3 Lite delivers sharper details with high-dynamic range and natural color. The camera may be configured for UHD 4K30 resolution with spatial audio or 1080p120 with omnidirectional audio to smoothly capture fast actions.

Authentic Tones in Any Light

The Tiny 3 Lite uses an advanced AI image signal processor to analyze your environment's light and contrast in real-time. It also intelligently anchors skin tone and color accuracy to help ensure visual clarity.

PDAF

PDAF keeps you and objects in focus in a variety of lighting conditions.

Professional-Grade Fidelity

Elevate your presentations with 24-bit, 48 KHz resolution audio. The Tiny 3 Lite is designed to intelligently isolate your voice while filtering out background noise.

Voice and Gesture Control

Control the Tiny 3 Lite with just your voice, even if your hands are full. You can enable or disable user tracking, adjust the zoom, switch to different position presets, and set the webcam in wake or sleep mode. You may also use Gesture Control to avoid interrupting your presentation while adjusting the zoom and designating target tracking.

Privacy

When not in use, the Tiny 3 Lite may be put into sleep mode with its camera tilted down when you leave.

Specs

Resolution and Frame Rate	UHD 4K at up to 30 fps 1080p at up to 120 fps
Image Sensor	1.2"-Type
Sensor Resolution	48 MP
System Connection	USB-C 2.0

Sensor

Resolution and Frame Rate	UHD 4K at up to 30 fps 1080p at up to 120 fps
Number of Lenses	1
Image Sensor	1.2"-Type CMOS
Sensor Resolution	48 MP
Aperture	f/1.8
Field of View	Horizontal: 66.9° Diagonal: 72° Diagonal: 79.1°
Zoom	4x (Digital)
White Balance	2000 to 10,000K Presets: Kelvin
Pan	130°
Tilt	92° (-32 to 60°)

General

System Connection	USB-C 2.0
Focus Type	Auto
Bluetooth	No
Wi-Fi	No
Power Source	Bus Powered
Low-Light Correction	Yes
Input Power	5 VDC at 0.5 A
OS Compatibility	Windows 10 or Later / macOS 11 or Later
Supported Formats/Protocols	MJPEG, YUV

Microphone

Build-in Microphones	3
Polar Pattern	Omnidirectional
Maximum SPL	130 dB
Signal-to-Noise Ratio (SNR)	69 dB
Microphone Features	Noise Cancellation
Cancellation Technology	Noise

Speakers

Built-In Speakers

Physical

Privacy Shutter	No
Security	No
Attachment Method	Clip, 1/4"-20 Tripod
Built-In Light	No
Operating Conditions	32 to 104°F / 0 to 40°C
Housing Material	Plastic
Dimensions (W x H x D)	41.0 x 58.0 x 41.0 mm
Weight	73 g

What's in the box:

1 x OBSBOT Tiny 3 Lite AI-Powered PTZ 4K Webcam

1 x USB-C Cable

1 x USB-C to USB-A Adapter

1 x Storage Case
