Premium Z-Series Audiophile Performance With Hi-Res Audio Certification!

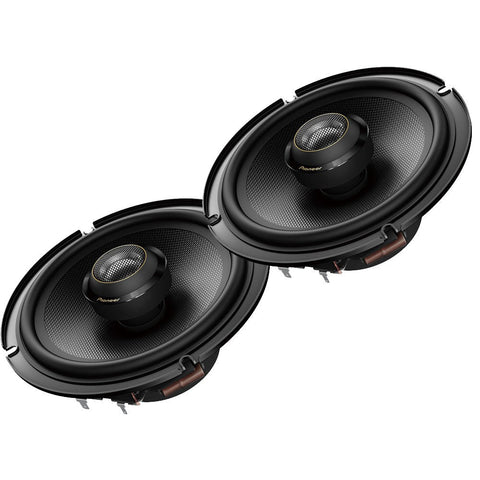

330W Peak Power 2-Way Coaxial Design with Twaron Aramid Fiber Cone and 96kHz Extended Frequency Response The Pioneer TS-Z65F Z-Series 6.5-inch 2-way coaxial speakers deliver audiophile-grade sound quality designed to reproduce music incredibly close to the original performance. Following Pioneer's OPEN & SMOOTH™ sound concept, these speakers feature smooth off-axis frequency response, superior directivity, and an extended frequency range from 32Hz to 96,000Hz, engineered specifically for Hi-Res Audio reproduction. With 330W peak power handling (110W RMS) and an oversized 11.3 oz ferrite magnet, the TS-Z65F delivers powerful, dynamic sound with exceptional clarity and accuracy. The woofer features Pioneer's advanced dual-layer cone construction combining Twaron® aramid fiber with cellulose fiber for exceptional strength, rigidity, and damping characteristics. Twaron is a synthetic aramid fiber that creates a lightweight, heat-resistant cone that confidently handles midrange and low frequencies without undesirable resonance. The butyl rubber surround ensures precise cone tracking and linearity throughout the full excursion range. The oversized magnet and powerful motor assembly deliver accurate bass reproduction with superior cone control. The 29mm (1.1") aluminum alloy balanced dome tweeter with VERTEX drive system reproduces the most demanding tones while maintaining accuracy even during high-level playback. The unique diaphragm shape, developed using HSDOM (Harmonized Synthetic Diaphragm Optimum Method) computer analysis, accurately controls differential vibration and improves high-frequency performance up to 96,000Hz. The 6.4g neodymium magnet provides strong magnetic field in a compact package, while the swivel design allows optimal tweeter positioning for best sound staging. The integrated inline crossover network with tri-position tweeter level adjustability (-3dB / 0dB / +3dB) provides installation flexibility without requiring an external crossover module. The 2000Hz crossover frequency ensures seamless integration between woofer and tweeter for cohesive full-range reproduction. Included OE (Original Equipment) 6.5" custom-fit installation brackets optimize fitment in applicable speaker locations for improved acoustic performance. The shallow 2.6" mounting depth and stamped steel basket ensure compatibility with most factory speaker locations. Experience unprecedented audio artistry with the Pioneer Z-Series TS-Z65F.

Features & Benefits:

✔ Hi-Res Audio Certified: 32Hz-96,000Hz extended frequency response reproduces high-resolution audio recordings with clarity, sharpness, and complexity that exceeds standard CD quality ✔ OPEN & SMOOTH™ Sound Concept: Engineered for smooth off-axis frequency response and superior directivity optimized for automotive applications where speakers aim away from listeners' ears ✔ Twaron® Aramid Fiber Cone: Dual-layer construction combining Twaron aramid fiber with cellulose fiber provides exceptional strength, rigidity, and damping for accurate midrange and bass reproduction ✔ 29mm Aluminum Dome Tweeter: VERTEX drive system with HSDOM-developed diaphragm shape delivers exceptional high-frequency performance with controlled differential vibration up to 96kHz ✔ Oversized Magnet Motor: 11.3 oz ferrite woofer magnet provides powerful magnetic field for superior cone control, accurate bass reproduction, and 110W RMS power handling ✔ Butyl Rubber Surround: High-compliance surround material maintains precise cone tracking and linearity throughout full excursion range for accurate signal reproduction ✔ Neodymium Tweeter Magnet: 6.4g high-strength neodymium magnet provides strong magnetic field in compact, lightweight design for exceptional high-frequency transient response ✔ Swivel Tweeter Design: Adjustable tweeter positioning allows optimal sound staging and directionality to compensate for off-axis factory speaker mounting locations ✔ Tri-Position Level Control: Integrated tweeter level adjustability (-3dB / 0dB / +3dB) allows precise tonal balance adjustment to match vehicle acoustics and personal preferences ✔ Integrated Inline Crossover: Built-in crossover network with 2000Hz crossover frequency ensures seamless woofer-tweeter integration without requiring external crossover module ✔ OE Custom-Fit Brackets: Included original equipment installation brackets optimize fitment in applicable 6.5" speaker locations for improved acoustic performance and secure mounting ✔ Shallow Mounting Depth: 2.6" (66mm) mounting depth and stamped steel basket ensure compatibility with most factory speaker locations including doors with limited clearance ✔ 85dB High Sensitivity: Efficient design delivers clear, loud sound even with factory head unit power, maximizing output without requiring amplification

Technical Specifications:

Speaker Configuration: 6.5" (16.5cm) 2-Way Coaxial Power Handling: - Peak Power: 330W per pair (165W each) - RMS Power: 110W each (220W per pair) Frequency Response: 32Hz - 96,000Hz Sensitivity: 85dB (± 1.5dB) Impedance: 4 Ohms Woofer Specifications: - Diameter: 6.5" (16.5cm) - Cone: Twaron® Aramid Fiber + Cellulose Fiber Dual Layer - Surround: Butyl Rubber - Basket: Stamped Steel - Magnet: Ferrite 11.3 oz - Mounting Depth: 2.6" (66mm) Tweeter Specifications: - Type: Balanced Dome with VERTEX Drive - Diameter: 29mm (1.1") - Diaphragm: Aluminum Alloy (HSDOM Optimized) - Magnet: Neodymium 6.4g - Swivel: Yes (Adjustable) Crossover Network: - Type: Integrated Inline - Crossover Frequency: 2000Hz - Tweeter Level: Tri-Position (-3dB / 0dB / +3dB) Certifications: Hi-Res Audio Certified Installation: - Mounting Depth: 2.6" (66mm) - Cutout Diameter: Standard 6.5" - Custom-Fit: OE installation brackets included Application: Premium Audiophile Factory Speaker Replacement
