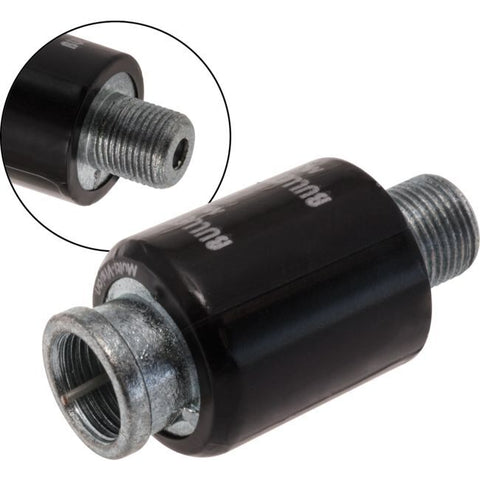

PRO2 Coaxial Surge Protector

Description

The SPF RF / Coaxial protector features robust gas tube technology and provides surge protection for radio frequency and coax cables.

Specifications:

• Gas tube: 90V type
• Insertion loss: 0.5dB Max. (50~470 MHz)
• 0dB Max. (470~900 MHz)
• Return loss: 16dB typical
• Normal resistance across coax: 10000 MO
• Surge protection attacks time: 10-7 seconds
• Maximum surge current: 5000A per 8/20 µS

Product specifications

  • Product Depth (mm): 70.0
  • Product Width (mm): 100.0
  • Product Height (mm): 50.0
  • Contains button battery: No
  • Manufacturer's warranty: 12 Months

PRO2

PRO2 Coaxial Surge Protector

Model: SPF SKU: 10003530

IT

Price:

$16.05

Key features

  • Gas tube technology for superior surge protection
  • Minimal insertion loss ensures signal efficiency
  • High return loss for optimal performance
