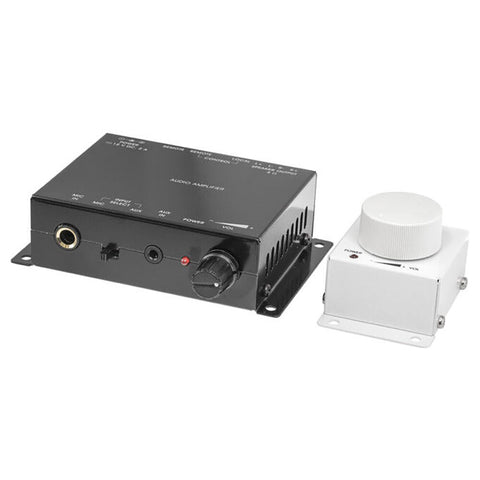

Pro2 Mic & Stereo Power Amplifier Kit w/ Volume Control Box 15x98mm Black

PRO1328K PRO2 MIC AND STEREO POWER AMPLIFIER

This unit is an excellent way to add an additional zone to an existing system. Compact 15W RMS stereo amplifier with selectable 3.5mm stereo or microphone inputs. Remote wired volume control.

15W per channel
Speaker volume control
Class-D power amplifier
Speaker protection circuit
Large detachable terminal block (supplied) for quick andeasy installation.
Screw terminals handle wire sizes from 24 to 12 gauge.

Connections

Input: 3.5mm stereo
Input 6.5mm stereo – dynamic microphone
Speaker Outputs: for 1 speaker pair (via screw terminals)

Specifications
Inputs: Dynamic microphone or stereo audio line level
Mircophone Pre-Amplifier Gain: 40dB
Speaker Audio Power Amplifier: Power Amplifier Type: Stereo Class-D
Output Power: 15W (rms) per channel (@ RL = 4Ω (Ohm))
THD+N: 0.06% (@ RL = 8Ω (Ohm), f = 1 kHz)
Minimum Load Resistance: 4Ω (Ohm)
Accessories: Includes Speaker Protection circuit
Power Consumed: 2A Max
Power Source: 12V DC 2A (included)
Size (L×W×H): 115mm × 98mm × 31mm

Includes:
1 x Amplifier
