Overview

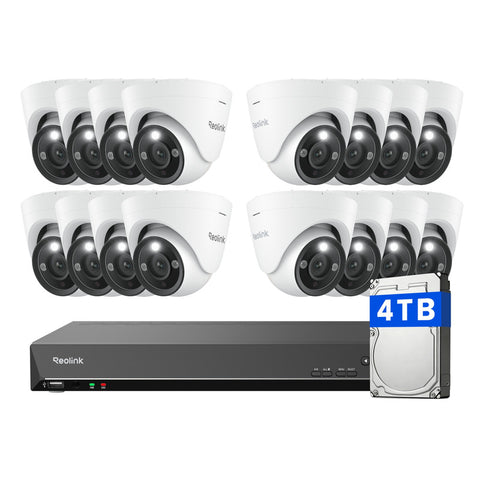

Reolink Smart 12MP PoE security system with 16 dome cameras and a 4TB NVR for 24/7 recording, featuring person/vehicle detection, color night vision and more.

Features and Details

Unlock the Hidden World of Details in 12MP
Whether it's investigating incidents, or identifying intruders, the 12MP security system gives you the advantage of detailed surveillance. Take a clear look at everything like you're really there.

Smart Detection, Better Protection
With the on-camera technology of analyzing the shapes of people, vehicles, and pets, this cctv system can accurately detect these objects, ignore other less important events, and thus greatly reduce false alarms.

Clear & Color, Even at Night
This smart camera kit with powerful spotlights offers full-color video recording day and night. It continues to keep your family firmly guarded after sundown.

PoE — Faster, Easier & Lower-Cost Installation
Thanks to Power over Ethernet (PoE) technology, each camera of this kit can transmit videos and be charged simultaneously via only one network cable . You can install these cameras quickly and nicely.

Non-Stop Recording
With the 4TB HDD and the storage capacity of up to 12TB, the PoE video surveillance kit supports all cameras to record continuously at the same time. You will have all-day videos without missing a beat.

Smart Playback
You can not only replay saved videos to find key information but also filter the video by detection modes and control the timeline to quickly locate what you want to see.

Multi-Cam Live Feed
See the live feed of multiple cams on the same screen. Easier to have an overview of your property.

Work with Various Reolink IP Cameras
This security camera system can be expanded up to 16-camera kit with Reolink IP cameras - bullet, dome or PTZ; 16MP, 12MP, 8MP, 5MP or 4MP – to cover every corner in your home, store or factory.

IP67 Weatherproof
Armed with rugged housing, the IP67 weatherproof cameras can stand up to thunderstorms, extreme cold/heat and any other harsh weather. Your faithful guard never quits.

NVR Specifications

IP Video Input: Support PoE IP camera x 16
Synchronous Playback: Up to 4 channels
SATA: 2 x SATA interface (1 x TB HDD included)
Capacity: Up to 12TB (max. 6TB capacity for each HDD)
External HDD: No
Video Output: VGA, HDMI
Browser Supported: Firefox, Chrome, Edge, Safari
Network Protocol: HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android
Power Supply: DC 48V~54V
Dimensions: 330 x 45 x 285mm
Weight: 2.4kg

Camera Specifications

Image Sensor: 1/2.49" CMOS sensor
Video Resolution: Default: 4512X2512 (12 Megapixels) at 20 frames/sec
Lens: f=4.0mm fixed; F =1.6, with IR-cut filter
Video Format: H.265
Field of View: Horizontal: 93°, Vertical: 49°
Audio: Two-way audio
Day & Night: Auto-switching with IR-cut filter
Color Night Vision: Spotlight: 1pcs/4.3W/6500K/700 Lumens
PoE: IEEE 802.3af, 48V Active
Smart Alarm: Motion detection; person detection; vehicle detection; pet detection
Record Mode: Motion-triggered recording (default); scheduled recording; 24/7 recording
Waterproof: IP67
Dimension: Φ117.4*103.8mm
Weight: 515g
