Overview

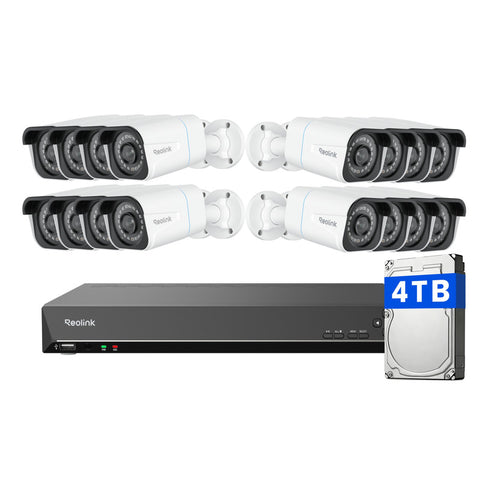

One of Reolink’s best PoE security camera systems. Comes with 16 4K 8MP Ultra HD bullet cameras and a 4TB 16-ch NVR for 24/7 recording. Features smart person/vehicle detection, audio recording, etc.

Features and Details

New Technology Reduces False Alarms
With the on-camera technology of analyzing the shapes of people, vehicles, and pets, this security system can accurately detect these objects, ignore other less important events, and thus greatly reduce false alarms.

Flawless Video in 4K Ultra HD
Home security jumps from 1080p to 4K Ultra HD – 1.6X clearer than Super HD and 4X clearer than 1080p HD. Details you see around home or store will be reproduced perfectly in live streaming and playback.

Seamless Surveillance with Night Vision
The cameras’ infrared lights enable excellent nighttime recording. With up to 100ft night vision, this security system continues to keep your family firmly guarded after sundown.

Easy PoE Setup
No power cable or adapter is needed. This security system with Power over Ethernet (PoE) technology needs only a network cable for each camera. Less wiring, less cost, more convenience.

Non-Stop Recording
With 4TB HDD built in and up to 12TB storage capacity, this PoE surveillance kit supports all cameras to record continuously at the same time. You will have all-day videos without missing a beat.

Easy Management
You can also access and control your cameras via Reolink APP and Client, besides NVR. Just a touch away, manage your home, store or factory easily.

Works with Various Reolink IP Cameras
This security camera system can be expanded up to 16-camera kit with Reolink IP cameras - bullet, dome or PTZ; 12MP, 8MP, 5MP or 4MP – to cover every corner in your home, store or factory.
* For best compatibility, Reolink cameras are recommended.

Stay Strong, Stay Weatherproof
Armed with rugged housing, the IP67 weatherproof cameras can stand up to thunderstorms, extreme cold/heat and any other harsh weather. Your faithful guard never quits.

NVR Specifications

IP Video Input: Support PoE IP camera x 16
Synchronous Playback: Up to 4 channels
SATA: 2 x SATA interface (1 x 4TB HDD included)
Capacity: Up to 12TB (max. 6TB capacity for each HDD)
External HDD: No
Power Supply: DC 48V~54V
Dimensions: 330 x 45 x 285mm
Weight: 2.4kg

Camera Specifications

Image Sensor: 1/2.49" CMOS Sensor
Video Resolution: 3840x2160 (8.0 Megapixels) at 25 frames/sec
Lens: f=4.0mm fixed; F =2.0, with IR-cut filter
Video Format: H.265
Field of View: Horizontal: 87°, Vertical: 44°
Audio: Audio recording
PoE: IEEE 802.3af, 48V Active
Smart Alarm: Motion detection; person detection; vehicle detection; pet detection
Record Mode: Motion-triggered recording (default); scheduled recording; 24/7 recording
Waterproof: IP66
Dimension: 60 x 66 x 192mm
Weight: 488g
