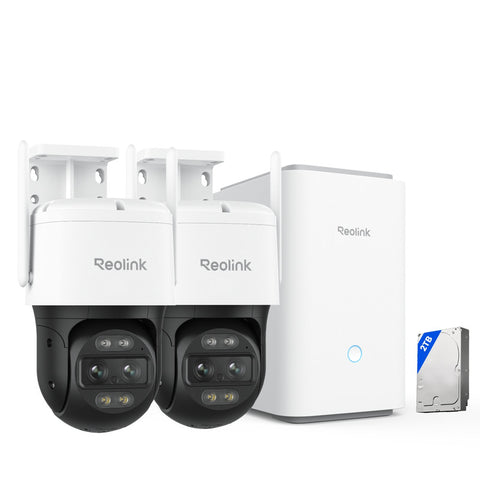

Reolink Home Hub Pro with TrackMix WiFi is a 4K UHD Wi-Fi 6 wireless camera system with 2TB HDD, expandable up to 16TB local storage. This sytem includes two dual-lens Wi-Fi cameras, featuring auto-zoom tracking, color night vision, person/vehicle/animal detection, and weekly insights.

Build Your All-in-One Security System

Elevate your security with the Home Hub Pro—a single hub that gives you full control. Effortlessly access all your Reolink cameras and footage on one interface, making management a breeze. With the included 2TB hard drive, enjoy 24/7 recording without extra fees.

2× 4K Dual-Lens Cam, Support 2.4GHz & 5GHz Wi-Fi
2TB HDD Included, Expandable Up to 16TB HDD
Up to 24 Reolink IP Cams, Up to 12 Wired Cams

*The Reolink Home Hub series products are currently compatible with all Reolink PoE cameras, plug-in Wi-Fi cameras and the latest battery Wi-Fi cameras, excluding 2MP battery cameras and 4G cameras.

Wide and Close Up, Always on Track

Experience next-level of auto tracking with dual lenses working in harmony. With auto-zoom tracking, TrackMix WiFi simultaneously captures wide-angle views and close-ups, while locking on moving objects across both perspectives. Every detail, every corner, all at a single glance.

Unleash the Power of Wi-Fi 6

Wi-Fi 6 technology upgrades your security system with blazing speeds for lag-free 4K live streaming. With higher capacity for more devices working simultaneously and coverage extending up to 1000 square meters*, it ensures every corner of your property is under vigilant surveillance.
*Data obtained under laboratory conditions. Results may vary in practice.

Alarm Center

Integrate the Home Hub Pro with smart cameras for efficient, centralized alarm management. Any motion detected by a camera, whether from people, vehicles, or animals, triggers the hub's 120dB customizable siren for immediate alerts, all without monthly fees.

Weekly Insights

View event history to effortlessly track and filter detection events from all connected cameras by date range, device, and event type. Stay informed with weekly insights of alarm events, including event types and involved devices.

HD Live View & Playback

Experience detailed 4K live streaming and smart playback from multiple cameras, all easily accessible with a tap on the Reolink App. Expand your system with 16MP cameras for unmatched clarity.

4K Clarity, Day or Night

Capture every detail in stunning 4K, day or night. With F1.6 aperture and motion spotlights, TrackMix WiFi delivers crystal-clear, full-color visuals, even in low-light conditions, ensuring your peace of mind around the

Advanced Encryption, Superior Privacy

With advanced encryption, Reolink Home Hub Pro ensures your recordings are protected and accessible only with the correct password—regardless of a reset. Its separate storage design keeps your footage securely stored in the hub, no worries about data leaks even if the camera is stolen.

Simple to Setup

Step 1. Set up the hub.

Connect the Home Hub to a power source and then to your router using the included Ethernet cable.

Step 2. Initialize the hub.

Open the Reolink App, and then follow the instructions to complete the initial setup.

Step 3. Add the cameras.

There are two ways to add cameras: from the list of devices on the LAN or by scanning the QR code.

Specification-Home Hub Pro

Camera: Up to 24 cameras
Device Compatibility:All Reolink battery Wi-Fi cameras, Plug-in Wi-Fi cameras, and PoE cameras (Battery cameras require a firmware upgrade)
Safety Protection:Account access and sharing options for individual devices are only available through Home Hub Pro
HDMI:YES
USB:YES
Reset Button:YES
Power:DC 12V/2A
Speaker:Max.120dB
Ethernet:1 x RJ-45 10/100 Mbps self-adaptive (for WAN),1 x RJ-45, 10/100 Mbps self-adaptive (for IP cameras)
SATA:YES (1 x 2TB HDD included)
microSD Card Slot:Up to 512GB*1
Storage Encryption:AES-128 encryption algorithm
Live View:App, PC Client
Playback:Smart playback/event history
Wireless Standard:IEEE 802.11 a/b/g/n/ac/ax
Operating Frequency:2.4/5 GHz
Wireless Security:WPA/WPA2/WPA3
Operating Frequency:868/915MHz
Network Protocols:TCP/IP, UDP, DHCP, P2P, UPNP, RTSP,RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
OS Supported:PC: Windows, Mac OS; Smartphone: iOS, Android
Max. User Access:11 users (1 admin account & 10 shared accounts)
Smart Home:Google Assistant
Operating Temperature:-10℃~+45℃
Operating Humidity:10%~90%
Dimensions:185*133*222mm
Weight:1096g

Specifications-Camera

Image Sensor: 1/3" +1/2.8"CMOS Sensor
Video Resolution: Up to 3840 x 2160 (8.0 megapixels) at 25 frames/sec
Lens: f=2.8mm@F = 1.6 , f=8mm@F = 1.6
Video Format: H.264, H.265
Field of View: Horizontal: 104° -38°, Vertical: 60° -21°
Zoom Mode: 6X hybrid zoom
Infrared Night Vision: Up to 30 meters (100ft) (LED: 2pcs/850nm)
Color Night Vision: Spotlights: 2pcs/6500K/450 lumens
Audio: Two-way audio
DC Power: DC 12.0V-2A, <12W
Storage: Micro SD card slot (Max. 512GB, not included)
Pan &Tilt Range: Pan: 355°, Tilt: 0° ~90°
Pan Speed: 2.5° -90°/s (Speed can be set)
Tilt Speed: 1.5° -60°/s (Speed can be set)
Preset: 32
Auto Tracking: Support
Operating Frequency: 2.4GHz/5GHz
Browsers Supported: Edge, Chrome, Firefox, Safari
OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android
Smart Alarm: Motion detection; person detection; vehicle detection; pet detection
Record Modes: Motion/scheduled recording (default: motion recording)
Tracking Method: Digital Tracking; Pan/Tilt Tracking First; Digital Tracking First
Work with: Google Assistant
Operating temperature: - 10°C~ +55°C (14°F~ 131° F)
Waterproof: IP65
Dimension: 228* 147* 129mm
Weight: 1.211kg
