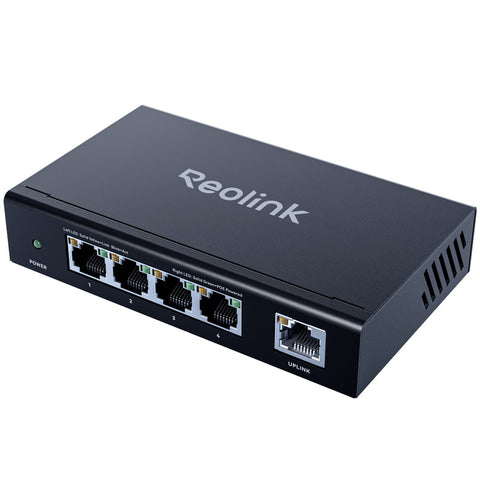

This is a 5-port Gigabit PoE switch supporting 65W power budget, with 4 PoE+ ports, 1 Gigabit uplink, power management, extend mode, recovery mode, fanless quiet design, and durable metal housing.

Power over Ethernet Technology

It provides a reliable PoE solution featuring 4 Gigabit PoE+ ports (10/100/1000Mbps) and 1 Gigabit Ethernet uplink ports (10/100/1000Mbps). Compliant with IEEE802.3af/at standard, it can deliver up to 30W for each PoE port and has a total power budget of 65W for up to 4 PoE devices.

Extend Mode

With Extend Mode enabled, the transmission speeds of Port 1 and 2 will be limited to 10Mbps, extending PoE distance to 820ft (250m) *. Simplify long-distance cabling for large spaces.

*Note: Standard Cat5e cable is required.

Recovery Mode

Automatically detects and reboots offline or unresponsive PoE devices, ensuring stable PoE connection and eliminating the hassles of manual resets.

Power Management

By monitoring power usage of connected devices,this PoE switch safeguards crucial ports and prevents power overloads. Once the total consumption exceeds 65W, it will power down sequentially from Port 4 to Port 1 until it drops below the switch's threshold.

Auto Detection of Adaptive Devices

It automatically identifies whether the connected device supports PoE and requires power, ensuring non-PoE is not powered to prevent potential damage.

4KV Surge Protection

With professional lightning protection on both ports and power supply, this PoE switch effectively blocks sudden spikes in voltage, avoiding damage to connected devices.

Noiseless Performance

With fanless design, this PoE switch operates without making any noises, ensuring a quiet environment at all times.

Plug & Play

Working perfectly with your PoE cameras, it transfers both data and electric power through only one Ethernet cable. You can connect it directly to your NVR or to the same LAN as your cameras. Easy to set up even for beginners.

Note: This PoE switch can only provide network data but not power when connected to Wi-Fi cameras.

Specifications

PoE Port: 4×10/100/1000Mbps
Uplink Port:1×10/100/1000Mbps
Power Voltage:‎Input Voltage: AC 100-240V
Power supply: 52V 1.25A 65W
PoE Protocol:IEEE 802.3af/IEEE 802.3at
Max. Power Per Port:30W
Working Temperature:-10°C to +45°C (14°F to 113°F)
Working Humidity:10% to 90%, non-condensing working
Dimensions:125.5×76.8×25.5mm
Weight:234g
