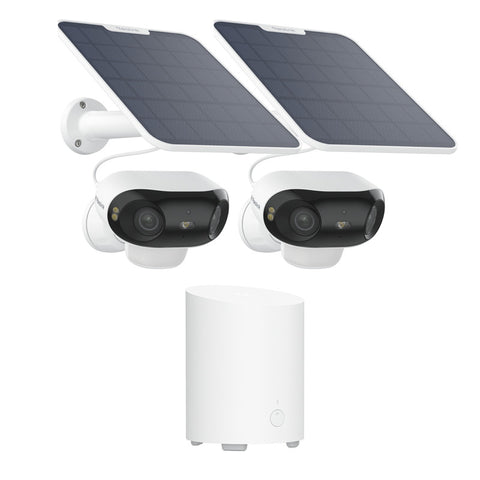

Reolink Home Hub mini with 4K camera is a 4K UHD dual-band Wi-Fi 6 wireless camera system with 180° blindspot-free view, expandable up to 2*512GB microSD card(not included) storage. It comes with two Wi-Fi cameras, featuring ColorX night vision, person/vehicle/animal detection, weekly insights.
Wire-Free Security System
Build a flexible wire-free home security system with Hub mini and battery cameras. Install cameras indoors or outdoors without wiring while the Hub centrally stores and manages recordings securely inside your home.
4K UHD 180° Blindspot-free
Thanks to dual image stitching technology, the two lenses combine two perspectives to create a seamless 180° view with a generous resolution of 4K 8MP (5140 x 1440).
Experience an impressively wide field of view - more than twice as large as conventional single-lens cameras and with minimal distortion. So you always have everything perfectly in view.
ColorX Night Vision
Experience full-color night vision with Reolink ColorX technology. Thanks to the F1.0 aperture lens and
1/18" CMOS sensor, this camera captures four times more
light to deliver lifelike details even in low light - without the need for a spotlight and still energy efficient.
Your privacy is our Priority
The Reolink Home Hub guarantees maximum security for your data and your privacy.
With the exclusive AES128 anti-theft encryption, only you have access to your recordings.
Since all data is stored locally in the hub, it is protected against theft. In addition, the LAN access ensures that your privacy is maintained without external networks.
Centralized Alarm Center
Connect the Home Hub to smart cameras for centralized and efficient alarm management. Any movement, whether from people, vehicles or animals, activates the hub's built-in siren and provides immediate alarm - with no monthly fee.
Scheduled Security Reports
Filter events from all connected cameras by date, device and event type to quickly find specific clips. Stay informed about the security of your home with weekly summaries that highlight alarm trends and relevant devices.
Rechargeable Battery
The camera has a built-in battery with a long running time so you can get constant protection without worrying about changing the battery or charging it frequently
Solar Panel
The 6W solar panel continuously supplies the camera with power. Adjust the angle of the panel according to the local conditions to maximize sunlight absorption.
Easy to Set Up
Step 1 Set up the hub
Connect the Reolink Home Hub to a power outlet and then to the router using the included Ethernet cable.
Step 2 Initialize the hub
Open the Reolink app and follow the instructions to complete the initial configuration.
Step 3 Add cameras
There are two ways to add cameras:
1) The list of devices in the LAN
2) Scanning the QR code
Thanks to its weatherproof IP66 protection rating, this camera is perfect for outdoor use. Since it is battery-operated and connected to WiFi, no ethernet cables are required.
This wireless setup allows for easy installation and flexible positioning of the surveillance camera.
Specifications-Home Hub mini
-
Camera Supported;Up to 8 Cameras
Compatible DeviceReolink Battery-Powered Wi-Fi
microSD Card Slot:Up to 1TB microSD card
SATA:No
24/7 recording:Yes (fluent mode)
Wireless Standard:IEEE 802.11 a/b/g/n/ac
Operating Frequency:2.4/5GHz
Wireless Security:WPA/WPA2
HDMI:No
USB:USB 2.0 (for data transfer)
Speaker:Yes (up to 110dB)
Ethernet:10M/100M bit RJ45 port for WAN
Live View/Playback :ResolutionUp to 12MP
PlaybackSmart: playback /quick event history
Sub-1G :Operating FrequencyNo
Power:DC 12V/1A
Network: ProtocolsTCP/IP, UDP, DHCP, P2P, UPNP,RTSP,RTMP, SMTP, SSL/TLS, DNS,DDNS, NTP，onvif
OS Supported:PC: Windows, Mac OS; smartphone:iOS, Android
Max. User Access:11 users (1 admin account & 10 sharedaccounts)
Smart HomeGoogle/AlexaDimensions:94x127.8mm
Weight:220g
Specifications-Camera
- Image Sensor: 1/1.8" CMOS sensor
- Resolution: 5120x1440 (8 megapixels) @15fps
- Lens: f=4mm，fixed
- Video Compression: H.264/H.265
- Field of View: Horizontal: 180°; Vertical: 50°
- Infrared Night Vision: NO
- Color Night Vision: With spotlights: 3pcs/2W/6500K
- Audio: Two-way audio
- Battery: 5000mAh rechargeable battery (Battery life varies based on settings, usage & temperature.)
- Bluetooth Standard: Bluetooth V5.0
- Power Port: USB Type-C port
- SD Card Slot: Supports Max. 5128GB microSD card (not included)
- Wireless Standard: IEEE 802.11 a/b/g/n/ac/ax
- Operating Frequency: 2.4GHz/5GHz
- Wireless Security: WPA-PSK/WPA2-PSK
- OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android
- Protocols & Standards: SSL, TCP/IP, UDP, UPNP, SMTP, NTP, P2P
- User Access: Max. 12 simultaneous streams (2 main & 10 sub streams)
- Smart Alarm: PIR detection; motion detection; person detection; vehicle detection; animal detection
- Recording Modes: Triggered recording
- Time Lapse: YES
- Smart Home Compatibility: Google Assistant
- Home Hub Compatibility: YES
- Operating Temperature: -10°C~55°C (14°F~131°F)
- Operating Humidity: 20% ~ 85%
- Weatherproof: IP66
- Dimensions: 128*87*80mm
- Weight (Without Bracket): 400g
