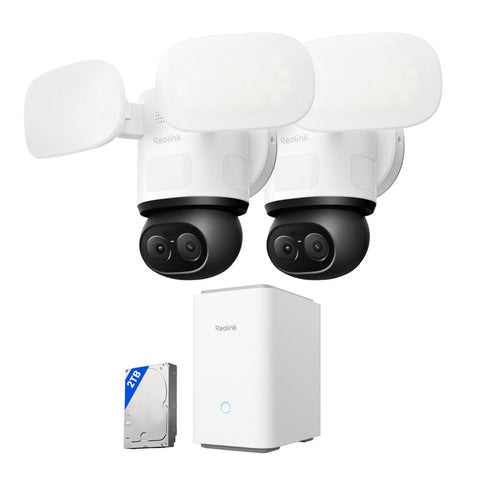

Build Your All-in-One Security System
Take your security to the next level with Home Hub Pro—a single hub that puts you in full control. Seamlessly connect all your Reolink cameras and recordings in one easy-to-use interface, making management a breeze. With the built-in 2TB hard drive, enjoy 24/7 recording without any extra fees.
- 2× 4K Wi-Fi 6 Cam, Support 2.4GHz & 5GHz Wi-Fi
- Built-in 2TB HDD, Expandable Up to 16TB HDD
- Up to 24 Reolink IP Cams, Up to 12 Wired Cams
*The Reolink Home Hub series products are currently compatible with all Reolink PoE cameras, plug-in Wi-Fi cameras and the latest battery WiFi cameras, excluding 2MP battery cameras and 4G cameras.
4K 8MP Clarity with Dual-Lens Design
Featuring both telephoto and wide-angle lenses, experience exceptional 4K 8MP clarity in an expansive view and capture precise details at 6x hybrid zoom.
Dual Warning: 3000-Lumen Light & 110dB Siren
With adjustable 3000-lumen floodlights and a 110dB siren, this camera provides powerful visual and audible deterrence once an intruder is detected, protecting your home from potential threats.
Auto Tracking & 360° Coverage with Pan & Tilt
This pan-tilt camera provides a full 360° view, ensuring no blind spots. Whether you're monitoring your front door or backyard, it covers every corner with ease. When detected, the camera will auto-track the target, providing you with more detailed information.
270° Ultra-Wide Out-of-View Detection
The PIR sensor extends the detecting range to 270°, ensuring threats are spotted even before they enter the frame.
Person/Vehicle/Animal Detection
Receive real-time notifications for suspicious people, vehicles, and animals. By distinguishing them from falling leaves or raindrops, the camera minimizes false alarms. No mothly Fees.
Local AI Video Search
Quickly locate footage with smart search filters–right from your local device. No cloud depency means enhanced privacy, full control, and zero subscription.
Lightning-Fast Wi-Fi 6 Connectivity
Experience seamless, lag-free live streaming with blazing-fast Wi-Fi 6 speeds. Supporting 5/2.4 GHz frequency, you can switch between them for a more stable network experience.
Local Storage, No Local Monthly Fees
Store your footage locally on up to a 512GB microSD card(not included), Reolink NVR, or Home Hub, or choose from network storage solutions, including FTP, NAS, or Cloud.
IP66 Waterproof Design for Outdoors
With an IP66 certification for weatherproofing, this camera offers robust defense against dust and rain, ensuring reliable performance in challenging outdoor conditions.
Multi-User Remote Access
Access the camera remotely from anywhere with multiple user accounts and seamlessly integrate into your smart home, all with no subscription fees.
Simple to Setup
Step 1, Set up the hub.
Connect the Home Hub Pro to a power source and then to your router using the included Ethernet cable.
Step 2, Initialize the hub.
Open the Reolink App and follow the instructions to complete the initial setup.
Step 3, Add the cameras.
There are two ways to add cameras: from the list of devices on the LAN or by scanning the QR code.
Specification-Home Hub Pro
- Camera: Up to 24 cameras
- Device Compatibility:All Reolink battery Wi-Fi cameras, Plug-in Wi-Fi cameras, and PoE cameras (Battery cameras require a firmware upgrade)
- Safety Protection:Account access and sharing options for individual devices are only available through Home Hub Pro
- HDMI:YES
- USB:YES
- Reset Button:YES
- Power:DC 12V/2A
- Speaker:Max.120dB
- Ethernet:1 x RJ-45 10/100 Mbps self-adaptive (for WAN),1 x RJ-45, 10/100 Mbps self-adaptive (for IP cameras)
- SATA:YES (1 x 2TB HDD included)
- microSD Card Slot:Up to 512GB*1
- Storage Encryption:AES-128 encryption algorithm
- Live View:App, PC Client
- Playback:Smart playback/event history
- Wireless Standard:IEEE 802.11 a/b/g/n/ac/ax
- Operating Frequency:2.4/5 GHz
- Wireless Security:WPA/WPA2/WPA3
- Operating Frequency:868/915MHz
- Network Protocols:TCP/IP, UDP, DHCP, P2P, UPNP, RTSP,RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
- OS Supported:PC: Windows, Mac OS; Smartphone: iOS, Android
- Max. User Access:11 users (1 admin account & 10 shared accounts)
- Smart Home:Google Assistant
- Operating Temperature:-10℃~+45℃
- Operating Humidity:10%~90%
- Dimensions:185*133*222mm
- Weight:1096g
Specifications-Camera
- Resolution:3840×2160 (8MP) @20fps; 1920×1080 (2MP) @20fps
- Lens:f=2.8mm fixed, F=1.6; f=8 mm fixed, F=1.6
- Field of View:Wide-angle lens: 104° horizontal, 60° vertical; Telephoto lens: 38° horizontal, 21° vertical
- Zoom:6X hybrid zoom
- Infrared Night Vision:Up to 30 meters (100ft); LED: 2pcs/850nm (Auto-switching with IR-cut filter)
- Color Night Vision:With Floodlights: 3000 Lumens/3000K–6500K
- Frame Rate:Main stream: 2fps – 20fps (default: 20fps); Sub stream: 4fps – 20fps (default: 20fps)
- Code Rate:Wide-Angle: Main:2048-5120Kbps default: 4096kbps; Sub: 128-1228Kbps (default: 1024kbps)
Telephoto: Main: 4096Kbps;Sub: default: 1024kbps - Audio:Two-way audio
- DC Power:AC 100V~240V, 50~60Hz; DC 5V⎓2A (only for setup)
- Power Port:No
- Reset Button:YES
- SD Card Slot:Supports max. 512GB microSD card(not included)
- Audio In/Out:Built-in microphone and speaker
- Built-in microphone and speaker:
- PT Angle(Max.):Pan: 355°, tilt: 50°
- Pan Speed:90/8°-90°/s (adjustable)
- Tilt Speed:60/8°-60°/s (adjustable)
- Preset Points:Suppots 1 guard position & up to 64 preset positions
- Patrol:NO
- Auto Tracking:YES
- Wireless Standard:IEEE 802.11 ac/ax/a/b/g/n
- Operating Frequency:2.4GHz/5GHz
- Wireless Security:WPA/WPA2/WPA3
- Browser Supported:Edge, Chrome, Firefox, Safari
- OS Supported:PC: Windows, Mac OS; Smartphone: iOS, Android
- Protocols & Standards:HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
- Max. User Access:Max. 20 users (1 admin & 19 user);Max. 12 simultaneous streams (2 main & 10 sub streams)
- Smart Alarm:Motion detection; Person/Vehicle/Animal detection
- Record Mode:Motion-triggered recording (default); scheduled recording; 24/7 recording
- Time Lapse:YES
- Smart Home Compatibility:Alexa, Google Assistant
- AI Video Search:YES
- Operating Temperature:-10°C ~ +55°C (14°F ~ 131°F)
- Operating Humidity:10% ~ 90%
- Weatherproof:IP66
- Dimensions:283×184×199 mm
- Weight:1.228kg
