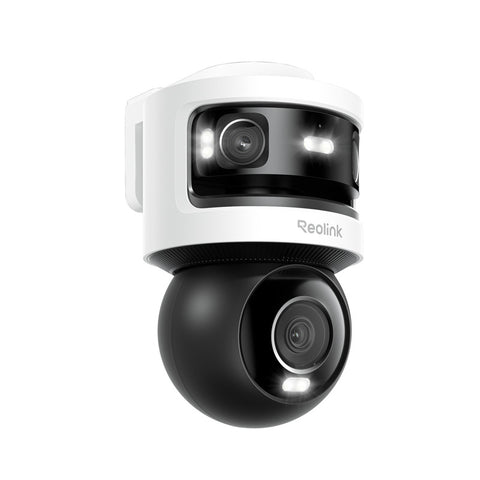

【Triple-Lens Panorama】
This camera combines a 10MP dual-lens for 180° panoramic view with a 4K PT lens for 350° tracking. The panoramic view records continuously while the PT lens zooms in on details, ensuring full coverage and clear close-ups.
【SyncTrack & Auto Framing】
When the upper camera detects targets, the PT lens instantly locks on and tracks, even beyond the wide view. It auto-zooms for close-ups, and with pinpoint, simply tap anywhere to direct the PT lens for precise tracking.
【AI Video Search】
Powered by advanced AI, simply enter natural language like “person in blue” or “red pickup” to instantly find relevant footage. No need to scroll through recordings, enabling faster search and quicker response.
【Smart Patrol & Active Guard】
Set up to 64 presets for automated hourly patrols. When the PT camera detects people or vehicles during its cruise, it triggers AI-powered tracking. Once the patrol ends, it returns to the home position for 24/7 guard.
【Color & IR Night Vision】
Multiple night modes for any scene. Turn on the spotlight for full-color footage, with options for always-on, manual off, or motion-triggered alerts—capturing clear details while actively deterring intruders.

Specifications

• Image Sensor: 1/2.7"+1/2.8" CMOS sensor
• Resolution
  • Upper cam: 5120 x 1920 (10MP)
  • Lower cam: 3840 x 2160 (8MP)
• Lens
  • Upper cam: f=2.8mm, F=1.6
  • Lower cam: f=6mm, F=1.6
• Video Compression: H.264 / H.265
• Zoom: Digital zoom
• Field of View
  • Upper Cam: H:180°, V:65°
  • Lower Cam: H:55°, V:30°
• Infrared Night Vision: Up to 30 meters (100ft) (auto-switching with IR-cut filter)
• Color Night Vision: With spotlight, 8pcs/7W/6000K
• Frame Rate
  • Main stream: 2fps - 20fps (default: 20fps)
  • Sub stream: 4fps - 20fps (default: 20fps)
• Bitrate
  • Upper cam
    Main stream: 3072Kbps - 8192Kbps (default: 6144Kbps)
    Sub stream: 256Kbps - 2048Kbps (default: 1536Kbps)
  • Lower cam
    Main stream: 3072Kbps - 7168Kbps (default: 5120Kbps)
    Sub stream: 256Kbps - 1228Kbps (default: 1228Kbps)
• Audio: Two-way audio, built-in microphone and speaker

• PoE: IEEE 802.3at, 48V, active
• DC Power: DC 12.0V⎓2A, <24W

• DC power port
• Ethernet Port: 1×10M/100Mbps RJ45
• SD Card Slot: Supports Max. 512GB microSD card
• Reset Button: Yes

• Max. PT Angle: Pan: 350°, Tilt: 50°
• Pan Speed: 4°–60°/s (configurable)
• Tilt Speed: 8°–30°/s (configurable)
• Preset Points: 1 guard position & up to 64 preset positions
• Patrol: Supports 1 patrol; up to 4 presets per patrol
• Sync Tracking: Yes

• Supported Browsers: Edge, Chrome, Firefox, Safari
• Supported OS
  • PC: Windows, Mac OS
  • Smartphone: iOS, Android
• Protocols & Standards: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
• User Access
  • Max. 20 users (1 admin & 19 users)
  • Max. 12 simultaneous streams (2 main & 10 sub streams)

• Smart Alarm: Motion detection; person detection; vehicle detection; animal detection
• Auto Framing: Yes
• Local AI Video Search: Yes
• Perimeter Protection
  • Upper cam: Line Crossing Alert, Zone Intrusion Alert, Zone Loitering Alert
  • Lower cam: N/A
• Recording Modes: Motion-triggered recording (default); Scheduled recording; 24/7 recording
• Time Lapse: Yes
• Tracking Methods: Sync Track
• Smart Home Compatibility: Google Assistant

• Operating Temperature: -10°C ~ +55°C (14°F ~ 131°F)
• Operating Humidity: 10% ~ 90%
• Weatherproof: IP66

• Dimensions: 202151125mm
• Weight (Without Accessories): 1.3kg
