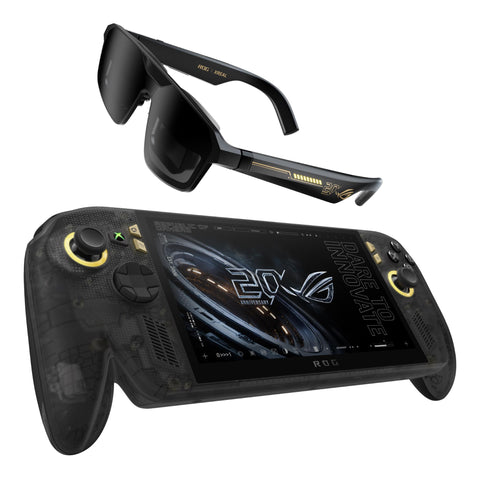

ROG XBOX Ally X20 Bundle
Innovate. Perform. Dominate.
Celebrate 20 years of ROG redefining portable gaming. Featuring an upgraded ROG XBOX Ally X model in an exclusive transparent colour scheme, this collection includes everything you need to play all your games anywhere, and in unprecedented style.
Key Features
A Masterpiece in Black and Gold
The ROG XBOX Ally X20 is a visual masterpiece. Its translucent black chassis offers a striking window into the machine, revealing a custom gold internal structure, gold-accented fans, and immersive joystick lighting. Crowned with an exclusive 20th Anniversary badge on the rear, this design is a true collector's item.
Your complete on-the-go arsenal
Unified by the exclusive ROG XBOX Ally X20 aesthetic, this bundle redefines on-the-go gaming. Pair your Ally X20 with the gold-accented ROG XREAL R1 Edition 20 for an instant 171-inch big screen experience with a 240Hz refresh rate wherever you travel, featuring ACSE integration for easy adjustments.
The ROG XREAL R1 Edition 20 does not operate as a standalone device and must be tethered to the ROG XBOX Ally device through USB-C.
A Grander Vision
Illuminated by OLED
ROG Nebula HDR
Step into a wider world of play. By slimming the top bezel, we’ve maximized the FHD display to a more expansive 7.4 inches, keeping you fully locked into the action while maintaining a sleek, portable form factor. Brand new for the ROG XBOX Ally X20, this Nebula HDR Display features an OLED panel with breathtaking visual depth and a peak brightness of 1400 nits, while the ultra-fast 120Hz refresh rate and FreeSync Premium Pro support ensures every movement is effortlessly smooth.
Next-Level Control
Pick it up, and it instantly feels right. Building on the success of its predecessor, the new ROG XBOX Ally X20 refines the familiar, asymmetrical layout you love. We kept that iconic comfort while completely elevating the control hardware underneath.
TMR Joysticks
The upgraded TMR sensors are designed to resist stick drift and minimise power consumption.
Ergonomic buttons
When pressed, the face buttons sit flush against the casing, enabling smooth, uninterrupted thumb sliding for complex fighting game inputs.
Transforming D-Pad
Easily transform the D-pad from a standard 4-way input into a smooth 8-way configuration for precise diagonal inputs.
Tech Specs
Operating System
Windows 11 Home
Processor CPU:
AMD Ryzen™ AI Z2 Extreme Processor 2.0GHz (24MB Cache, up to 5.0GHz, 8 cores, 16 Threads); AMD XDNA™ NPU up to 50TOPS
Display
7.4-inch FHD (1920 x 1080) 16:9
OLED Anti-reflection(AR) display
DCI-P3: 100% Gorilla® Glass Victus® Gorilla® Glass DXC
Touch Screen (10-point multi-touch)
Refresh Rate: 120Hz
Brightness: 600 nits (SDR)/1400 nits (HDR)
Pantone Validated
Support Dolby Vision HDR: Yes
FreeSync Premium Pro
Memory
24GB LPDDR5X on board
Support dual channel memory
Storage
1TB PCIe® 4.0 NVMe™ M.2 SSD (2280)
I/O Ports
1x 3.5mm Combo Audio Jack
1x USB 3.2 Gen 2 Type-C support DisplayPort™ / power delivery
1x Type C support USB 4 (Thunderbolt™ 4 compliance, DisplayPort™ 2.1 with Freesync support, Power Delivery 3.0)
1x microSD Express card reader (supports up to SD v8.0, PCIe® Gen4 x1; UHS-I with DDR200 mode)
Control and Input
View button
Menu button
L & R impulse triggers
L & R Hall Effect analogue triggers
Command Center button
Action button
A B X Y buttons
2 x assignable grip buttons
XBOX button LED
Transforming D-pad
TMR Joysticks with Aura RGB joystick light rings
Haptics: HD haptics
Gyro: 6-Axis IMU
Audio
Smart Amp Technology
Hi-Res certification (for headphone)
Dolby Atmos
AI noise-cancelling technology
Built-in array microphone
2-speaker system with Smart Amplifier Technology
Network and Communication
Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.4 (*Bluetooth® version may change with OS version different.)
Battery
80WHrs, 4S1P, 4-cell Li-ion
Power Supply
TYPE-C, 68W AC Adapter, Output: 20V DC, 3.4A, 68W, Input: 100~240V AC 50/60Hz universal
Weight
756 g (1.67 lbs)
Xbox Game Pass
Xbox Game Pass Premium_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Premium. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)
Security
Microsoft Pluton security processor
Built-in Fingerprint Sensor
Included in the Box
ROG XREAL R1 Edition 20
