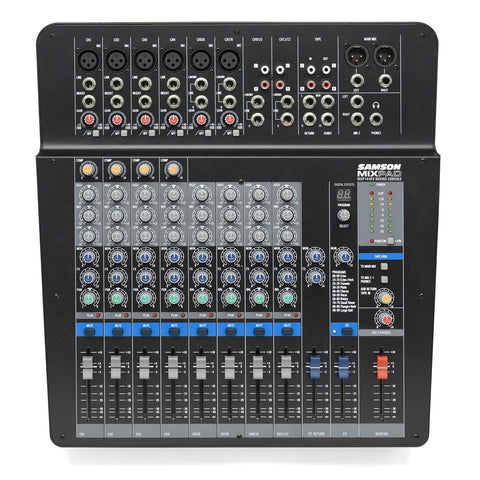

Samson MXP144FX 14 Channel Mixer with EFX & USB

• 888144-Product-0-I.jpg
• 888144-Product-1-I.jpg

Overview

The compact 14 channel  Samson MixPad MXP144FX offer all of the sonic clarity, ease of use and premium performance that serious musicians demand.
With 100 24-bit, low-noise digital effects, it offers a studio-inspired effects processor to give your mixes a professional touch. Bidirectional USB connection for recording a mix to your favourite DAW or integrating digital music files from your computer into a project.

The MXP144FX offers six MDR mic preamps with four of the channels equipped with single-knob compressors. All channels on the MXP144FX are controlled via precision 60mm faders and feature a 3-band EQ, Gain trim, high pass filter and pre-fader Aux send for your monitor mix. In addition, each channel on the MXP144FX
has a mute switch and a post-fader Aux send for introducing external effects. The MXP144FX output comes with XLR and 1/4” outs on the Main Mix.

The MXP144FX mixers include brightly coloured knobs, as well as 8 segment LED level metering for safe and efficient operation in dark environments.

A capable small-format mixer that sounds great with an affordable price.

Fetaures

- Ultra-low-noise, high headroom analog mixer
- Six Class A, MDR (Maximum Dynamic Range) mic preamps
- Four stereo channels with multiple input options (1/4” and RCA)
- Four TRS inserts for external signal processing
- 3-band active EQ
- High-quality, precision 60mm faders
- Four single-knob studio-quality compressors
- Pre-fader Aux send for monitor mix
- Post-fader Aux Send for external effects
- All mic channels equipped with input Gain and high pass filters
- 48-volt Phantom Power for condenser microphones
- Multiple outputs: Main Mix, Mix 2, Phones and Tape
- XLR and 1/4” Main Mix outputs
- Tape inputs assignable to Main Mix or Mix 2/Phones outputs

Specification

Mixer Type: Analog
Channels: 12
Mic Preamps: 6 x XLR
Inputs-Line: 112 x TRS, 4 x RCA
Outputs-Main: Mix 2 1/4" Stereo, 1/4" Headphone output. Tape Out RCA
Faders: 8
Effects: Yes
EQ: Multi-Band
Aux Sends: 2
Phantom Power: Yes
Computer Connectivity: USB
Dimensions (WxHxD) mm: 457.2 x 457.2 x 158.8
Weight: 3.63 kgs
