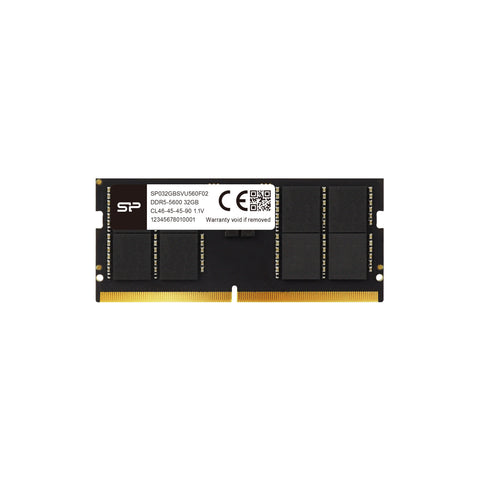

SP Silicon Power Upgrade 32GB DDR5 5600MHz CL46 1.1V SODIMM Laptop Notebook PC Computer RAM Memory Module -SP032GBSVU560F02

Harness The Power Of DDR5

Taking speed, capacity, and reliability even further, the cutting-edge technology of this DDR5 SODIMM module gives that next-level edge for your laptop's performance. With an aggressive 5600MT/s frequency, it's 75% higher than a standard 3200MT/s DDR4 to provide multi-core CPUs with extreme responsiveness and the power to multi-task seamlessly.

Greater Power Efficiency

Even with all of its extra power, this DDR5 SODIMM module improves upon its predecessor with on-module voltage regulation. A power management integrated circuit (PMIC) reduces the burden on the motherboard control and results in a lower voltage of 1.1V versus 1.2V for DDR4 for even less power consumption.

Higher Computing Performance

That's not all that's doubled – the minimum burst length on this DDR5 SODIMM module is up to 16, up from 8 for DDR4. This improves data bus efficiency, providing twice the data on the bus, and consequently reduces the number of reads/writes to access the same cache data line.

Less Room For Error

This DDR5 SODIMM module introduces On-Die ECC (Error Correction Code), a new feature that was designed to correct bit errors in real-time within the DRAM chip. By doing so, this advanced technology keeps your system reliably stable while automatically correcting data errors.

2 Channels Are Better Than 1

For even greater performance, this DDR5 SODIMM module features two independent 32-bit channels per module. Compared to DDR4's single channel, splitting it into two increases efficiency and lowers the latencies of data accesses for the memory controller to promote optimized efficiency.

Specification:

Capacity :	Single Pack: 8GB, 16GB, 32GB Dual Channel Kit: 16GB(8GB2), 32GB(16GB2), 64GB(32GB*2)
Dimensions :	69.6mm x 30.0mm
Voltage :	1.1 V
Form Factor :	SODIMM
Frequency (Speed) :	5600 MT/s , 4800 MT/s
CAS Latency :	CL40 (4800) / CL46 (5600)
Certification :	CE, UKCA, Green dot (Germany & Spain Only), WEEE, Triman, RoHS
Warranty :	Limited Lifetime Warranty

Key Features:

5600MT/s grants faster transmission speeds and higher bandwidth than DDR4
1.5x faster than standard 3200MT/s DDR4 to provide multi-core CPUs with extreme responsiveness
Available in 8GB, 16GB, and 32GB module densities
Doubled chip unit capacity compared to DDR4 (from 16GB to 32GB) for seamless multi-tasking
Low voltage of 1.1V for less power consumption
Improved reliability versus DDR4 with On-Die Error Correction Code (ECC)
Optimized efficiency with two independent 32-bit channels per module
High computing performance with double the banks and double the burst length compared to DDR4
Compatible with 13th Gen Intel® Core™ processors that support DDR5 and DDR5 compatible motherboards
